Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

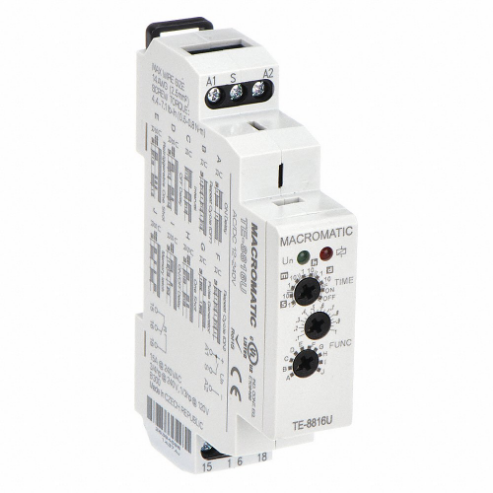

| Item | Time Delay Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Potentiometer |
| Amps Rating | 15A |
| Base Shape | Square |
| Base Type | Not Applicable |
| Body Depth | 0.69" , 2 13/25" |
| Body Height | 3.55" |
| Body Width | 0.69" , 2 13/25" |
| Coil Rating | 3 VA |
| Contact Amp Rating | 15A |
| Contact Form | SPDT |
| Contact Material | Silver Alloy |
| Dc Contact Rating | Not Applicable |
| Electrical Connection | Mount , Screw Clamp |
| Electrical Connection Type | Screw |
| Environmental Protection | Enclosed |
| Frequency | 50/60 Hz |
| Function | On Delay, Interval On, Flasher(Off First), Flasher(On First), Off Delay, Single Shot, Off Delay Falling Edge, On Delay/Off Delay, Latching Relay, Pulse Generator(Pulse=0.5 Sec.) |
| Green Certification Or Other Recognition | RoHS.png |
| Max. Time Setting | 10 Days |
| Min. Time Setting | 0.1 sec. |
| Min. Time Setting - Timer | 0.1 sec. |
| Minimum Time Setting | 0.1 sec. |
| Mounting | Din Rail |
| No. Of Functions | 10 |
| No. Of Pins | 6 |
| No. Of Pins - Relay | 6 |
| Number Of Delay Functions | 10 |
| Number Of Functions | 10 |
| Number Of Pins | 6 |
| Overall Depth | 3 1/2" |
| Overall Height | 3.55" |
| Pins | 6 |
| Reset Time | 0.15 sec. |
| Resistive Contact Amp Rating | 15A |
| Sealing | Enclosed |
| Socket | Not Applicable |
| Socket Type | Not Applicable |
| Status Indicator | LED |
| Timing Adjustment | Analog |
| Timing Relay Functionality | Flasher, Interval Delay, Latching, Off Delay, On Delay, One Shot, Pulse Generator |
| Coil Voltage | 12-240V AC/DC |
| Contact Rating (ac) | 15A @ 240V |
| Current Rating | 15A |
| Delay Function | Multi Function |
| Electrical Operating Durability | 70000 |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 131°F |
| Maximum Switching Voltage | 240V AC/DC |
| Maximum Time Setting | 10 Day |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -4°F |
| Number Of Pins/terminals | 6 |
| Power Consumption | 1.7 W, 3 VA |
| Relay Mounting Style | DIN-Rail |
| Reset Method | Time-Limit Reset |
| Standards | CE CERTIFIED, UL LISTED |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 9.02 |
| Ship length (cm) | 6.4 |
| Ship width (cm) | 1.75 |
| HS code | 9107000000 |
| Country of Origin | CZ |
| Product | Model | Contact Form | Pins | Price | |
|---|---|---|---|---|---|
 |
TE-8812U | DPDT | 8 | €89.66 |
