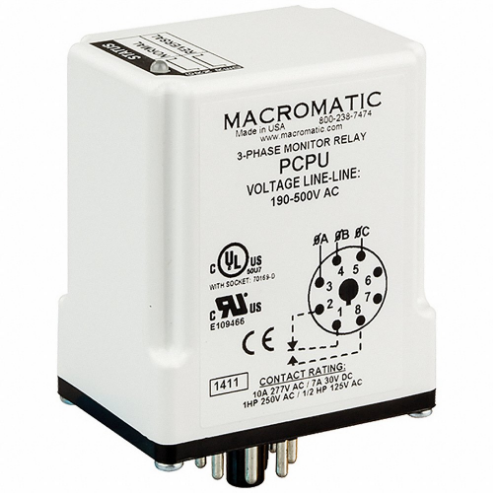

| Item | Voltage Sensing Relay |
| Ac Voltage | 190-500V AC |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 2 2/5" , 2.9" |
| Body Height | 1.77" , 2.9" |
| Body Width | 1.7" , 2 12/25" |
| Electrical Connection Type | Pin |
| Max. Switching Voltage | 550V |
| Maximum Switching Capacity | 40 VA |
| Monitored Parameters | Phase Reversal |
| Number Of Contacts | 1 |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Output Amps | 10A |
| Over Voltage | No |
| Overall Depth | 1.77" |
| Overall Height | 3" |
| Overvoltage | No |
| Phase | 3 |
| Phase Loss Sensitivity | No |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Unbalance | No |
| Power Consumption | 40 VA |
| Protection | Phase Reversal Only |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Reset | Automatic Upon Correction Of Fault. |
| Restart | Auto |
| Restart Time Delay | 1 sec. |
| Socket Code | A |
| Trip Delay | 100 ms |
| Under Voltage | No |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 7A @ 30V |
| Current Rating | 10A |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Input Voltage | 190-500V AC |
| Mechanical Operating Durability | 10000000 |
| Number Of Pins/terminals | 8 |
| Standards | CE CERTIFIED, CULUS LISTED, CURUS |
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 6.3 |
| Country of Origin | US |
| Product | Model | Base Type | Contact Amp Rating (resistive) | Contact Form | Current Rating | Input Voltage | Item | Load Capacity | Output Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | Octal | 10 | SPDT | - | 208-480 VAC | 3-Phase Line Monitor | - | - | €152.05 | |
 |
PAP208 | Octal | 10 | SPDT | - | 208 VAC | 3-Phase Line Monitor | - | - | €104.98 | |
 |
PAP240 | Octal | 10 | SPDT | - | 240 VAC | 3-Phase Line Monitor | - | - | €87.52 | |
 |
PAP480 | Octal | 10 | SPDT | - | 480 VAC | 3-Phase Line Monitor | - | - | €88.18 | |
 |
PMPU-FA8 | Octal | 10 | SPDT | - | 208-480 VAC | 3-Phase Line Monitor | - | - | €116.93 | |
 |
VWKE120A | DIN Rail | 16 | SPDT | - | 120 VAC | Voltage Sensing Relay | - | - | €59.81 | |
 |
VWKE240A | DIN Rail | 16 | SPDT | - | 240 VAC | Voltage Sensing Relay | - | - | €100.32 |
