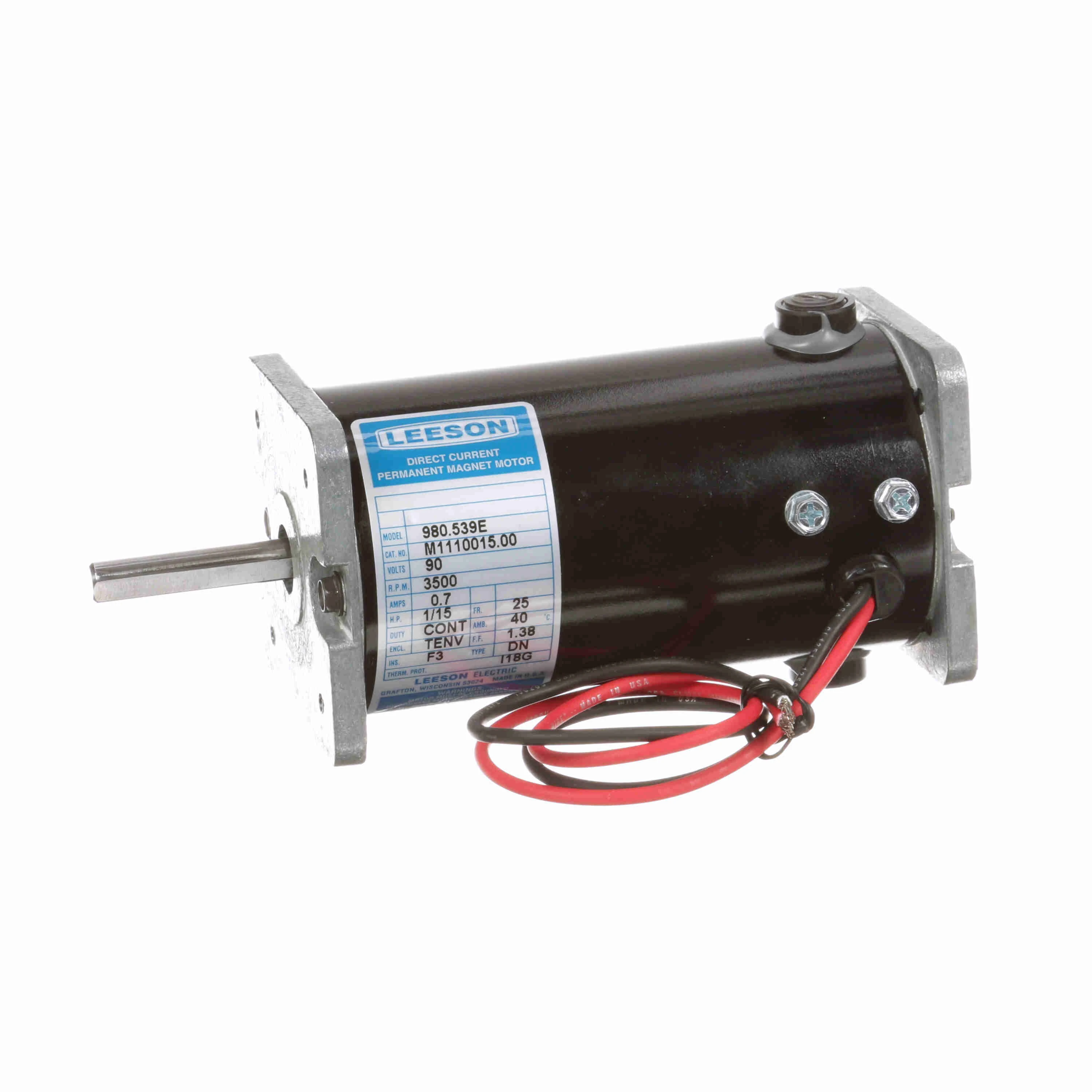

LEESON M1110015.00 980.539 / 980.539E Sub Fractional Motor, 0.07 HP, 90V, 3500 RPM
€300.78 /unit
Request a Quote
Payment
Payment
| Item | DC Motor |
| Amps | 0.7A |
| Assembly | M1041059 |
| Duty Cycle | Continuous |
| Efficiency | 71.8% |
| Form Factor | 1.38 |
| Frame | 25 |
| Hp | 1/15 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Reversible |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3500 RPM |
| Packaging | M1307027.01 |
| Rotation | Reconn |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Torque | 19.2 oz.-in. |
| Type | DN |
| Voltage | 90V DC |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
| Product | Model | Amps | Assembly | Enclosure | Frame | HP | Insulation Class | Mounting | Packaging | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1110003.00 | 0.7 | M1041047 | TENV | 25 | 1/25 | H | SQ. FLANGE | M1307027.01 | €461.70 | |
 |
M1120013.00 | .8 | M1041219 | TENV | 31 | 1/15 | F | SQ. FLANGE | M1307027.01 | €363.00 | |
 |
M1120014.00 | 1.1 | M1041215 | TENV | 31 | 1/10 | F | SQ. FLANGE | M1307027.01 | €142.77 | RFQ
|
 |
M1120027.00 | 1.3 | M1041223 | TENV | 31 | 1/8 | H | SQ. FLANGE | M1307027.01 | €446.41 | |
 |
M1120041.00 | 0.55 | M1041225 | TENV | 31 | 1/10 | F | SQ. FLANGE | M1307027.01 | €134.15 | |
 |
M1120042.00 | 1.8 | M1041221 | TENV | 31 | 1/6 | F | SQ. FLANGE | M1307027.01 | €449.00 | |
 |
M1120059.00 | 1.5 | M1041215 | TENV | 31 | 1/8 | H | SQ. FLANGE | M1307027.01 | €411.56 |
