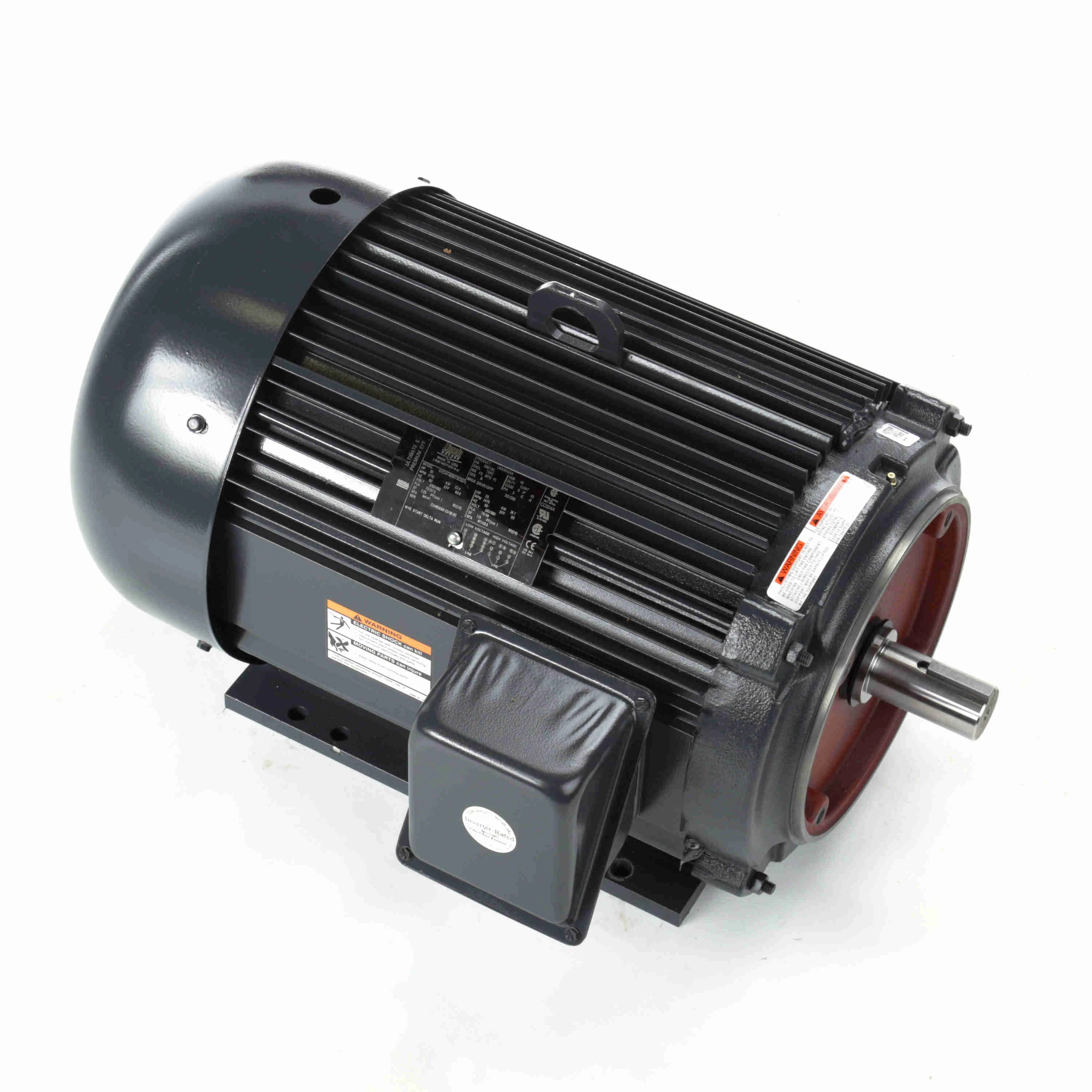

LEESON LM32842 AF4B30TSC61Y General Purpose Motor, 25 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€5,084.30 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | G |
| Duty Cycle | Continuous |
| Frame | 286TSC |
| Frequency | 50/60 Hz |
| Full Load Amps | 75/37.5A |
| Hp | 30 hp, 25 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, G |
| Output Kw | 22.4/18.7 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 80 |
| Service Factor | 1.15, 1.25 |
| Type | TFL |
| Voltage | 230/460V AC |
| Ship weight (kg) | 194.4 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Hz | Insulation Class | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102697 | LO102697 | - | S56C | 1.3 / .65 | 1/3 | 50/60 | F | 0.25 | - | RFQ
|
 |
102922 | LO102922 | B | S56C | 1.3 / .65 | 1/3 | 60 | B | 0.25 | - | RFQ
|
 |
110916 | - | B | 56C | 2.8 / 1.4 | 3/4 | 60 | F | .56 | €808.08 | RFQ
|
 |
119418 | - | B | 56HC | 8 / 4 | 3 | 60 | F | 2.24 | €1,037.14 | |
 |
121179 | - | B | 143TC | 3.2 / 1.6 | 1 | 50/60 | F | 0.75 | €944.96 | |
 |
121180 | - | B | 145TC | 4.8 / 2.4 | 1.5 | 50/60 | F | 1.12 | €979.52 | |
 |
121181 | - | B | 145TC | 5.8 / 2.9 | 2 | 50/60 | F | 1.49 | €1,023.89 |
