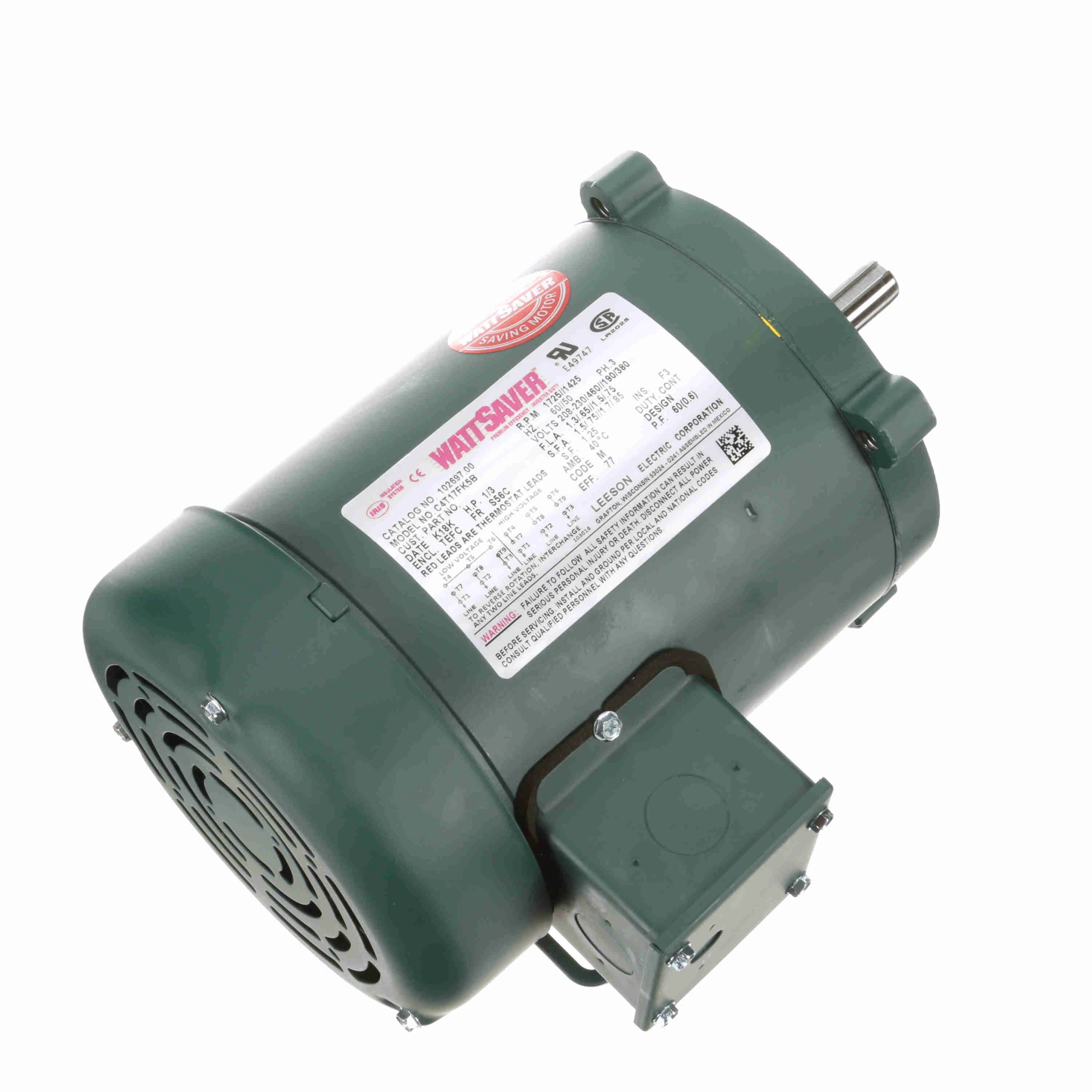

LEESON 102697.00 C4T17FK5B General Purpose Motor 50-60 Hertz
Item: AJ2PNP
Model: 102697.00Cross Ref: C4T17FK5B
Get it by Jun 7, Friday
Request a Quote
Payment Methods
Delivery Partners
Get it by Jun 7, Friday
Payment Methods
Delivery Partners
| Item | General Purpose Motor |
| Assembly | LO102697 |
| Code | M |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | S56C |
| Full Load Amps | 1.3 / .65 |
| HP | 1/3 |
| Hz | 50/60 |
| Insulation Class | F |
| kW | 0.25 |
| Lubrication | VERIFY |
| Max. Ambient Temp. | 40 |
| Motor Thermal Protection | 7AM035A5 |
| Mounting | Rigid |
| Packaging | B |
| Phase | 3 |
| Power Factor | 60 |
| Protection | AUTOMATIC |
| Rotation | REV |
| RPM | 1800 / 1500 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Type | TF |
| Voltage | 208-230 / 460 |
| Ship weight (kg) | 9 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Product | Model | Power Factor | Insulation Class | Assembly | Enclosure | Frame | Full Load Amps | HP | Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102919.00 | 69 | B | LO102919 | TENV | S56C | 1.8-1.8 / .9 | 1/2 | 60 | €556.73 | |
 |
102922.00 | 60 | B | LO102922 | TEFC | S56C | 1.3 / .65 | 1/3 | 60 | - | RFQ
|
 |
110916.00 | 65 | F | - | TEFC | 56C | 2.8 / 1.4 | 3/4 | 60 | €857.05 | |
 |
114624.00 | 72 / 81.6 | F | - | TEFC | 56C | 2.4 / 1.2 | 3/4 | 50/60 | €711.33 | |
 |
116745.00 | 68.5 / 78 | F | - | TEFC | 56C | 3.2 / 1.6 | 1 | 50/60 | €1,170.59 | |
 |
119418.00 | 86 | F | - | TEFC | 56HC | 8 / 4 | 3 | 60 | €1,352.91 | |
 |
121179.00 | 68.5 | F | - | TEFC | 143TC | 3.2 / 1.6 | 1 | 50/60 | €1,002.23 |
