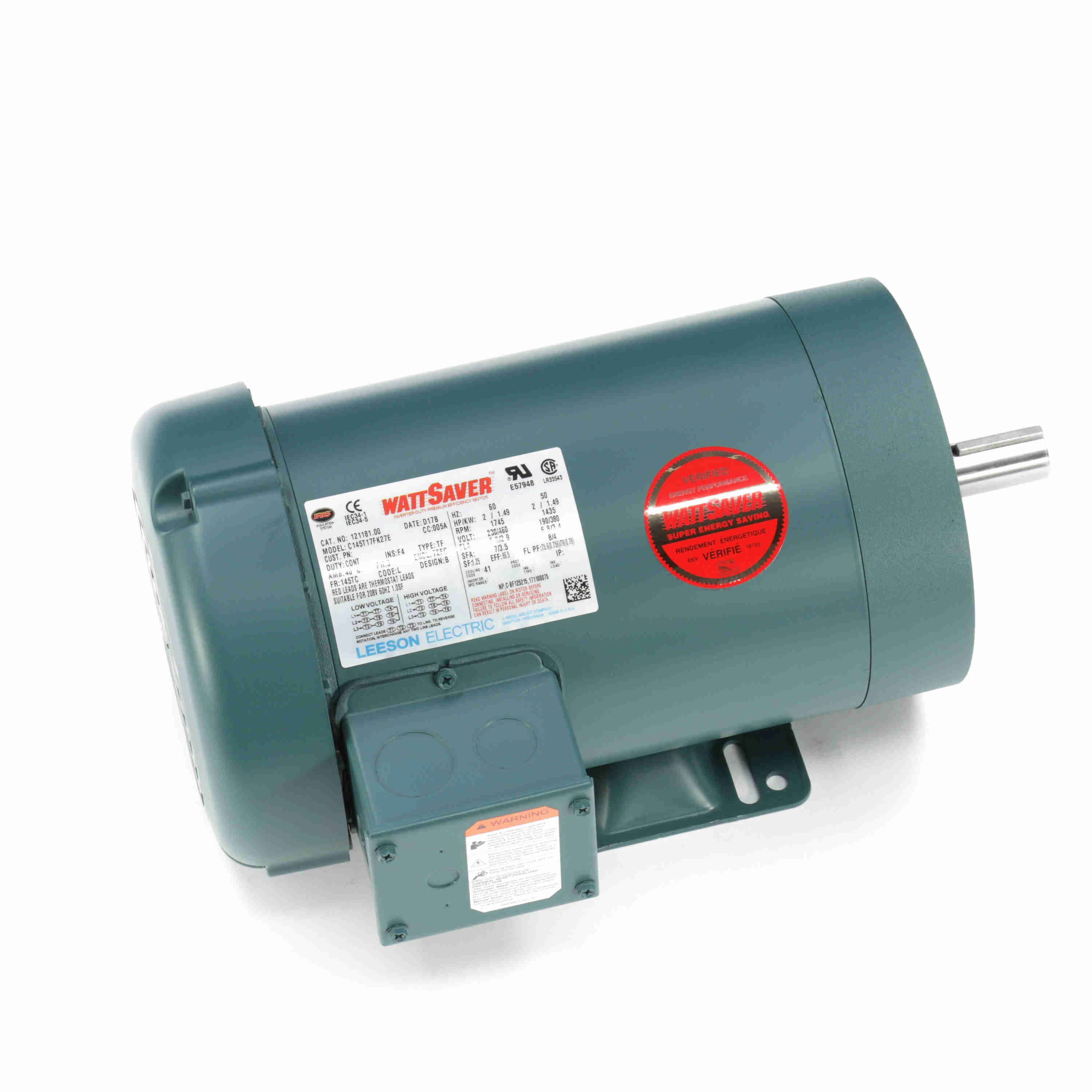

LEESON 121181.00 C145T17FK27E General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€1,023.89 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | L |
| Duty Cycle | Continuous |
| Frame | 145TC |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.8/2.9A |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, L |
| Output Kw | 1.49 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 75.6, 79 |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Thermal Protection | Automatic |
| Type | TF |
| Voltage | 230/460V AC |
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Hz | Insulation Class | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102697 | LO102697 | - | S56C | 1.3 / .65 | 1/3 | 50/60 | F | 0.25 | - | RFQ
|
 |
102922 | LO102922 | B | S56C | 1.3 / .65 | 1/3 | 60 | B | 0.25 | - | RFQ
|
 |
110916 | - | B | 56C | 2.8 / 1.4 | 3/4 | 60 | F | .56 | €808.08 | RFQ
|
 |
119418 | - | B | 56HC | 8 / 4 | 3 | 60 | F | 2.24 | €1,037.14 | |
 |
121179 | - | B | 143TC | 3.2 / 1.6 | 1 | 50/60 | F | 0.75 | €944.96 | |
 |
121180 | - | B | 145TC | 4.8 / 2.4 | 1.5 | 50/60 | F | 1.12 | €979.52 | |
 |
121672 | - | B | 143TC | 4 / 2 | 1.5 | 50/60 | F | 1.12 | €864.86 |
