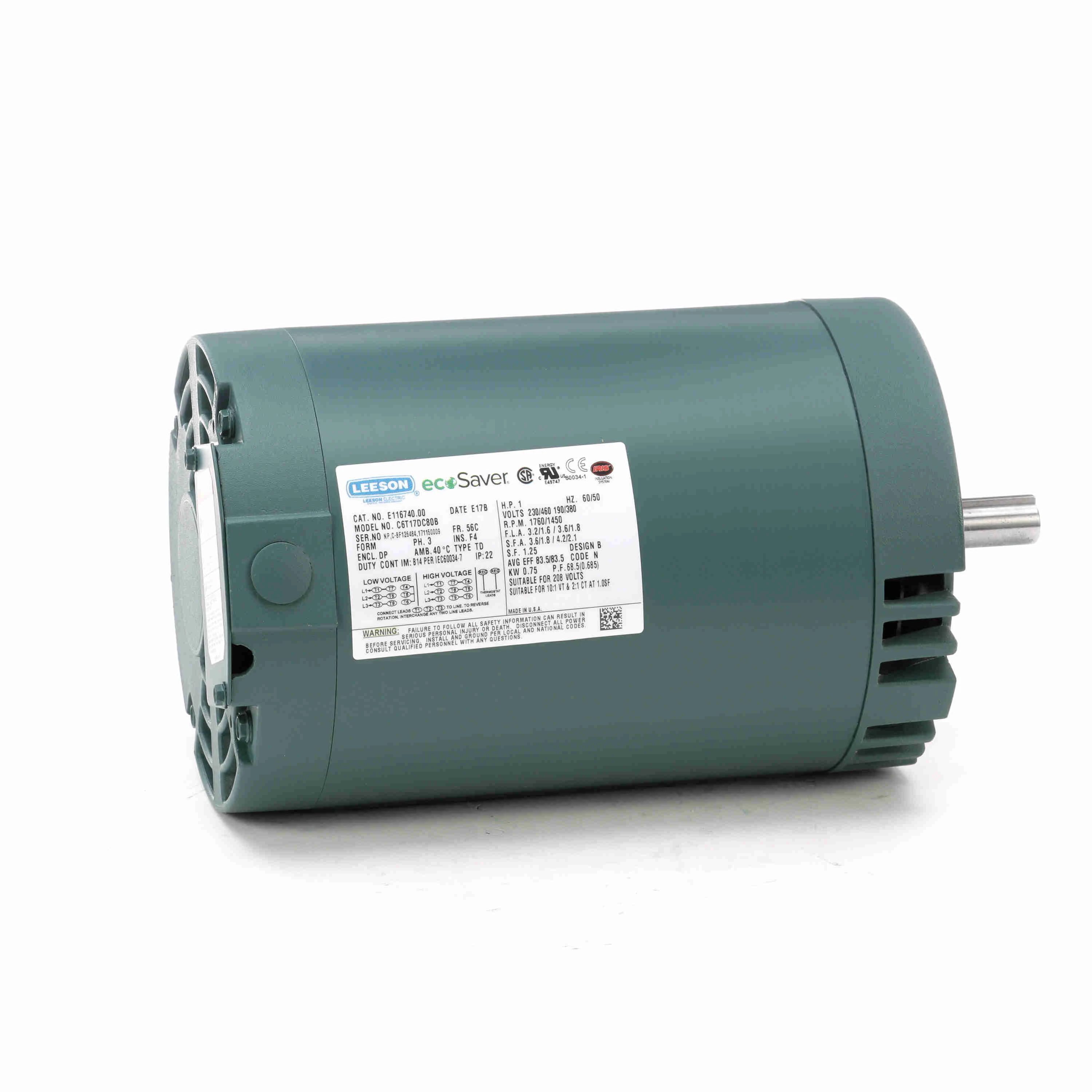

LEESON E116740.00 C6T17DC80B General Purpose Motor, 1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Monday, Jun 16
€754.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Bearing Type | Ball |
| Code | N |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 83.5% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.2/1.6A |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Lubrication | Polyrex EM |
| Motor Application | General Application |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | Reversible |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1760 RPM |
| Nema Design | B, N |
| No. Of Speeds | 1 |
| Output Kw | 0.75 kW |
| Overall Length | 12 1/8" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 68.5 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Thermal Protection | Thermostat |
| Type | TD |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | T-Stat |
| Nominal Efficiency | 83.5% |
| Removable Base | Permanently Lubricated Bearings |
| Standards | CSA, UL |
| Weight | 36 lbs. |
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 27 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | kW | Lubrication | Motor Thermal Protection | Packaging | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
121071 | 145TC | 6-5.8 / 2.9 | 2 / 1 1/2 | 1.49 / 1.12 | Polyrex EM | 9700K46 | B | 75.6 / 68 | €899.43 | |
 |
131518 | 182TC | 8 / 4 | 3 / 2 | 2.24 / 1.49 | Polyrex EM | 9700K46 | B | 79 / 76 | - | RFQ
|
 |
E102695.00 | S56C | 1.2 / .6 | 1/3 | 0.25 | VERIFY | A56227-64 | F | 70.6 | €456.35 |
