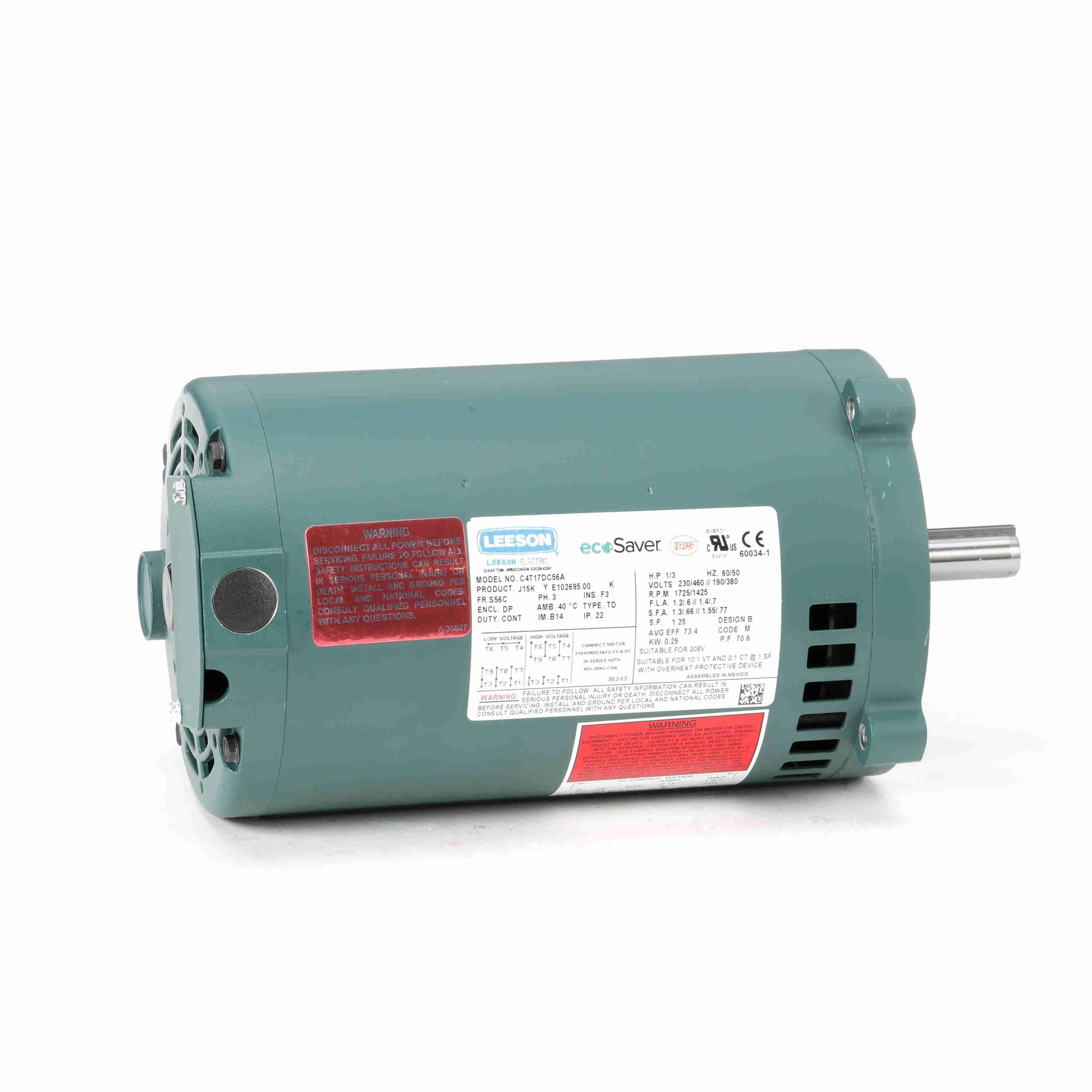

LEESON E102695.00 C4T17DC56A General Purpose Motor, 0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Monday, Jun 16
€456.35 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | M |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | S56C |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.2/0.6A |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, M |
| Output Kw | 0.25 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 70.6 |
| Service Factor | 1.25 |
| Thermal Protection | Thermostat |
| Type | TD |
| Voltage | 230/460V AC |
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | kW | Lubrication | Motor Thermal Protection | Packaging | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
121071 | 145TC | 6-5.8 / 2.9 | 2 / 1 1/2 | 1.49 / 1.12 | Polyrex EM | 9700K46 | B | 75.6 / 68 | €899.43 | |
 |
131518 | 182TC | 8 / 4 | 3 / 2 | 2.24 / 1.49 | Polyrex EM | 9700K46 | B | 79 / 76 | - | RFQ
|
 |
E116740.00 | 56C | 3.2 / 1.6 | 1 | .75 | Polyrex EM | 9700K46 | B | 68.5 | €754.24 |
