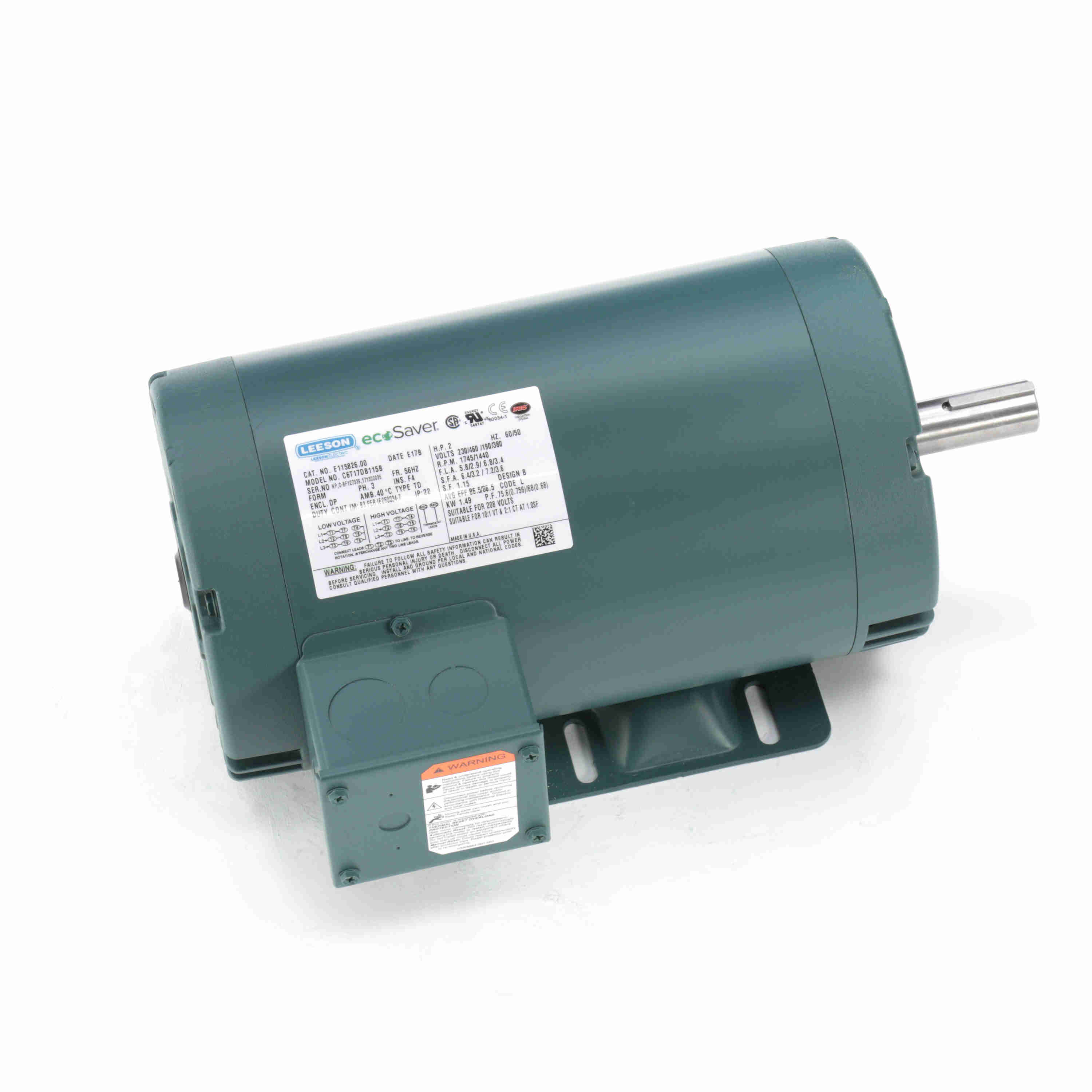

LEESON E115826.00 C6T17DB115B General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€814.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | L |
| Duty Cycle | Continuous |
| Frame | 56HZ |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.8/2.9A |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, L |
| Output Kw | 1.49 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 75.6, 68 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Thermal Protection | Thermostat |
| Type | TD |
| Voltage | 230/460V AC |
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | kW | Lubrication | Packaging | Power Factor | RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
170144.6 | 215T | 28.5-25.6 / 12.8 | 10 / 7 1/2 | 7.5 / 5.6 | Polyrex EM | 307997.99 | 79.3 / 81.4 | 1800 / 1500 | - | RFQ
|
 |
E110028.00 | 56 | 2.8 / 1.4 | 3/4 | .56 | Polyrex EM | B | 64.2 / 71.1 | 1200 / 1000 | €796.30 | |
 |
E115825.00 | 56HZ | 4.8 / 2.4 | 1.5 | 1.12 | Polyrex EM | B | 67.7 / 81 | 1800 / 1500 | €737.52 | |
 |
E115827.00 | 56HZ | 3.2 / 1.6 | 1 | .75 | Polyrex EM | B | 68.5 | 1800 / 1500 | €652.82 | |
 |
E119351.00 | 56 | 1.8-2 / 1 | 1/2 | .37 | MULTEMP SRL | B | 62.9 / 71 | 1800 / 1500 | €495.52 | |
 |
LM32731 | 145T | 7.2 / 3.6 | 3 | 2.24 | VERIFY | B | 88 | 3600 / 3000 | €260.61 | RFQ
|
