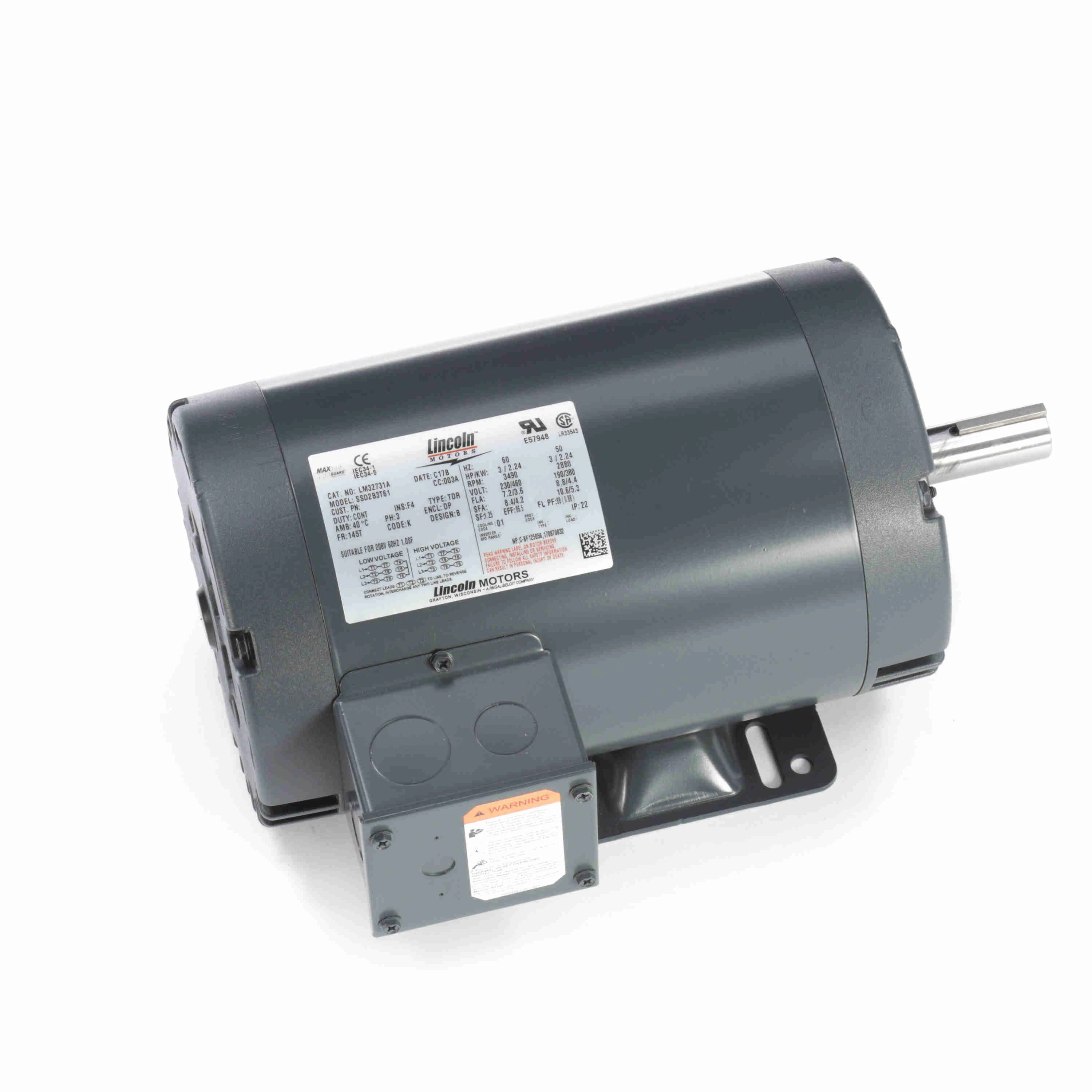

LEESON LM32731 SSD2B3T61 General Purpose Motor, 3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
€260.61 /unit
Request a Quote
Payment
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | K |
| Duty Cycle | Continuous |
| Frame | 145T |
| Frequency | 50/60 Hz |
| Full Load Amps | 7.2/3.6A |
| Hp | 3 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600/3000 RPM |
| Nema Design | B, K |
| Output Kw | 2.24 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 88 |
| Service Factor | 1.25 |
| Type | TDR |
| Voltage | 230/460V AC |
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | kW | Lubrication | Packaging | Power Factor | RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
170144.6 | 215T | 28.5-25.6 / 12.8 | 10 / 7 1/2 | 7.5 / 5.6 | Polyrex EM | 307997.99 | 79.3 / 81.4 | 1800 / 1500 | - | RFQ
|
 |
E110028.00 | 56 | 2.8 / 1.4 | 3/4 | .56 | Polyrex EM | B | 64.2 / 71.1 | 1200 / 1000 | €796.30 | |
 |
E115825.00 | 56HZ | 4.8 / 2.4 | 1.5 | 1.12 | Polyrex EM | B | 67.7 / 81 | 1800 / 1500 | €737.52 | |
 |
E115826.00 | 56HZ | 5.8 / 2.9 | 2 | 1.49 | Polyrex EM | B | 75.6 / 68 | 1800 / 1500 | €814.16 | |
 |
E115827.00 | 56HZ | 3.2 / 1.6 | 1 | .75 | Polyrex EM | B | 68.5 | 1800 / 1500 | €652.82 | |
 |
E119351.00 | 56 | 1.8-2 / 1 | 1/2 | .37 | MULTEMP SRL | B | 62.9 / 71 | 1800 / 1500 | €495.52 |
