MARATHON MOTORS 143THTR15535 Y283 Vector Motor | AJ2LYP Y283

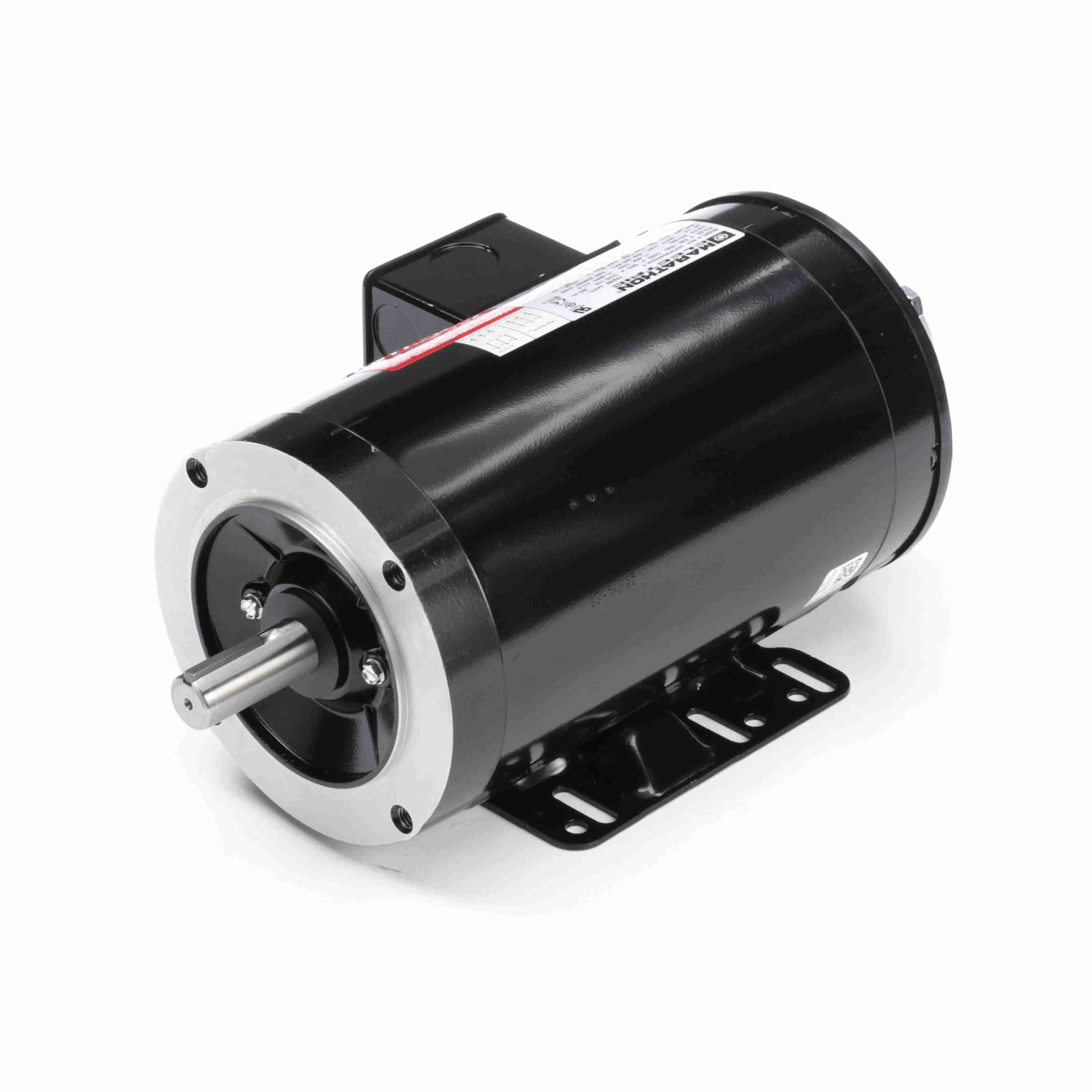

LEESON 143THTR15535 Y283 / 143THTR15535AA Plus Inverter Duty Encoder Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2LYPModel: 143THTR15535Cross Ref: 5THZ8 / Y283 / 143THTR15535AA
See variants (5)
In Stock

Get it by Tuesday, Jun 17

€1,853.29 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemVector Motor
Ambient Temp.40°C
AssemblyF1 Only
Conduit Box PositionF1 Only
Constant Torque1000:1
DesignA
Duty CycleContinuous
Efficiency84%
Frame143TC
Frequency60 Hz
Full Load Amps3/1.5A
Full Load Efficiency84%
Hp1 hp
Insulation ClassClass H
Max. Ambient Temp.40°C
Motor Enclosure DesignTotally Enclosed Non Ventilated
Motor Mounting PositionHorizontal
Motor Mounting TypeCradle
Motor TypeSquirrel Cage Inverter Rated
Mounting TypeC Face, Removable Base
Nameplate Rpm1800 RPM
Nema DesignA
OrientationHorizontal
Phase3
Power0.75 kW
Service Factor1
Voltage230/460V AC

Shipping Info:

Ship weight (kg) 18.9
Ship height (cm)20.62
Ship length (cm)50.5
Ship width (cm)26.04
HS code8501516040
Country of OriginMX

Product Details:

    • Provisions: REGAL SUPPLIED - REGAL MOUNT
    • Pulse Count: 1024
    • Starting Type: INVERTER ONLY
    • KVA Code: P
    • Drive End Bearing: BALL
    • IP Code: 43
    • Opposite End Bearing: BALL
    • Drive End Bearing Size: 6205
    • Opposite End Bearing Size: 6203
    • Inverter Speed Range: CONSTANT 1000:1

Product Variants

ProductModelBaseEfficiency GroupEnclosureFrameFrame MaterialFull Load AmpsHPkWPrice
MARATHON MOTORS 145THTR15540 Vector Motor 4.5 Lb-ft 1.5 Hp 230/460 V | AE6KLH 5THZ9 / Y284 145THTR15540RemovableStandardTotally Enclosed Nonventilated145TCRolled Steel4.8/2.41.5-€1,823.40
MARATHON MOTORS 145THTN17034 Vector Motor 6.0 Lb-ft 2 Hp 230/460 V | AE6KLX 5TJA0 / Y285 145THTN17034RigidEpactTotally Enclosed Nonventilated145TCCast Iron6.0/3.02-€2,446.06
MARATHON MOTORS 056H17T15528 Y281 Vector Motor | AJ2LBK 5THZ6 / Y281 056H17T15528--TENV56C-2.4/1.23/40.56€1,626.74
MARATHON MOTORS 056H17T15526 Y280 Vector Motor | AJ2LMP 5THZ5 / Y280 056H17T15526--TENV56C-1.6/.81/20.37€1,554.34
MARATHON MOTORS 056H17T15527 Y282 Vector Motor | AJ2MAB 5THZ7 / Y282 056H17T15527--TENV56C-3/1.510.75€1,722.40
