LEESON 112615.00 P6C17FZ27K General Purpose Farm Duty Motor | AJ2QHX P6C17FZ27K

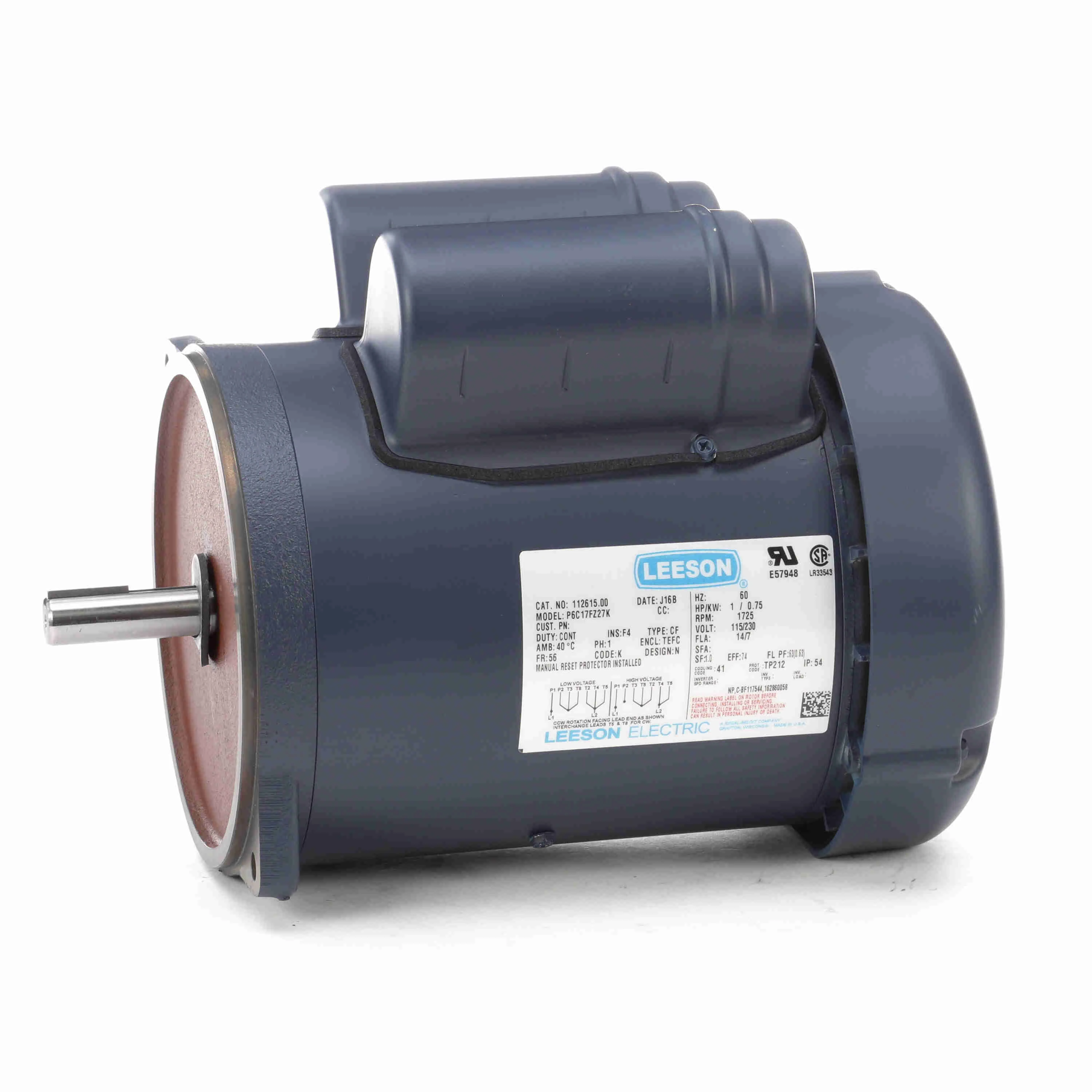

LEESON 112615.00 P6C17FZ27K General Purpose Farm Duty Motor

In Stock
Item: AJ2QHX Model: 112615.00Cross Ref: P6C17FZ27K / 36X716

Get it by Jun 7, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€664.29 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemFarm Duty Motor
AssemblyLC-48
CodeK
DesignN
DutyContinuous
EnclosureTEFC
Frame56
Full Load Amps14 / 7
HP1
Hz60
Insulation ClassF
kW0.75
LubricationPolyrex EM
Max. Ambient Temp.40
Motor Thermal ProtectionCED2797
MountingRound
PackagingB
Phase1
Power Factor63
ProtectionMANUAL
RotationSELECTIVE CCW
RPM1800
Service Factor1.0
Shaft Dia.5/8"
TypeCF
Voltage115 / 230

Shipping Info:

Ship weight (kg) 17.1
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52

Product Details:

  • Eff 100%: 74
  • Bearing OPE: 6203
  • CC Number: EXEMPT
  • Bearing PE: 6203
  • Nameplate: 993500
  • Winding: C634259
  • GROUP: 3
  • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelMotor Thermal ProtectionkWAssemblyFrameFull Load AmpsHPHzInsulation ClassPrice
LEESON 101119.00 Drive Motor, 3/4 hp, 1725 Rpm, 115/208-230VAC | AJ2PKH P4C17FZ6J / 60WC98 101119.00Manual.56LO10111948Y10.8/5.3-5.4A3/460 HzF€1,425.19
LEESON 101120.00 Auger Duty Motor, 1/2 hp, 1725 Rpm | AJ2PKJ P4C17FZ7M / 60WC97 101120.00Manual.37LO10112048Y8/4.4-4A1/260 HzF€509.67
LEESON 101159.00 Drive Motor, 1/3 hp, 1725 Rpm, 115/230VAC, 48Y Frame | AJ2PKK P4C17FZ11N / 60WC96 101159.00Manual.246LO10115948Y6.2/3.1A1/360 HzB€1,117.82
