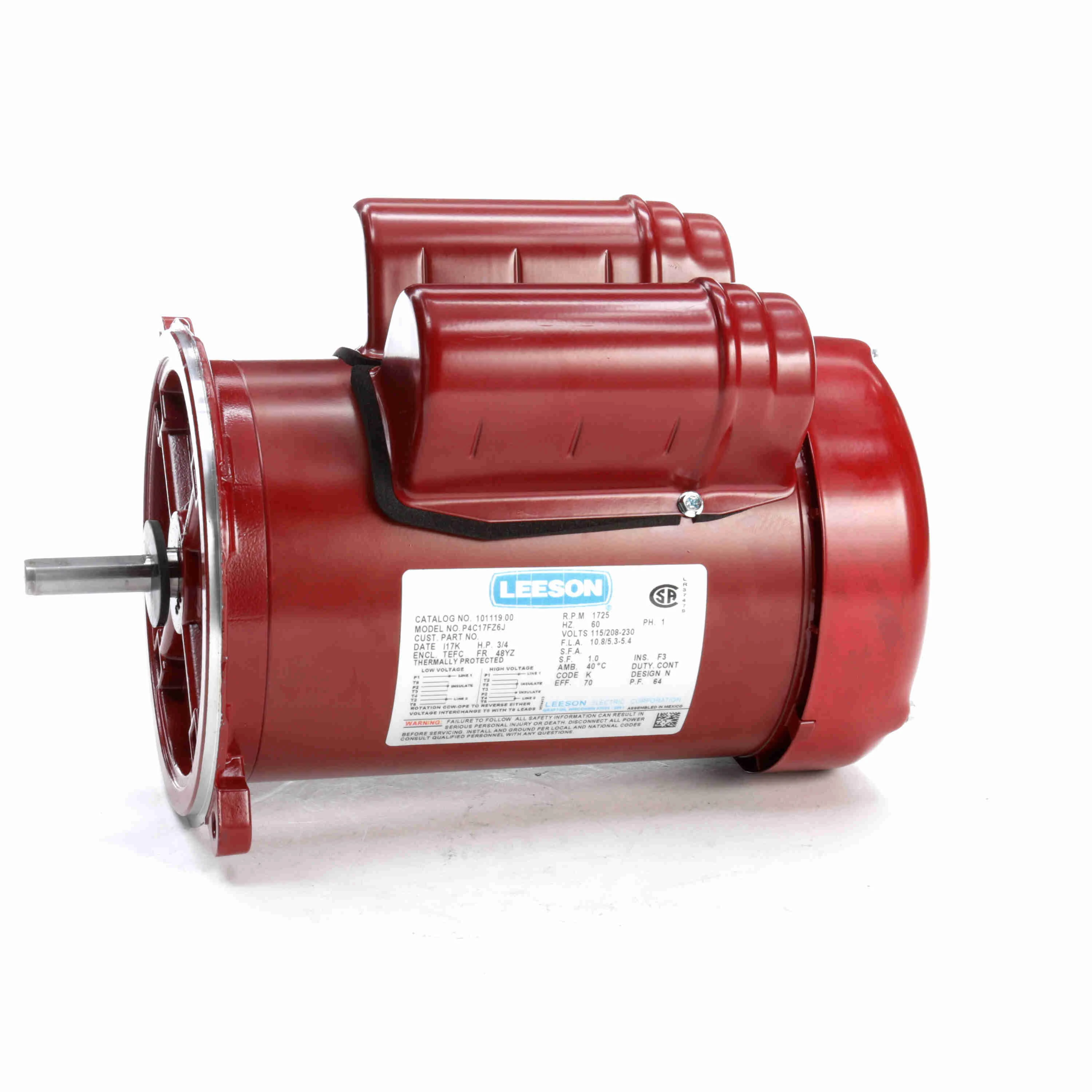

LEESON 101119.00 P4C17FZ6J Auger Drive Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Monday, Jun 16
€559.43 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Assembly | LO101119 |
| Bearing Type | Ball |
| Bolt Circle Dia. | 7 1/4" |
| Capacitor Required | Yes |
| Code | K |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.8/5.3-5.4A |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 104°F |
| Motor Application | Auger |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Mounting Type | Round |
| Nema Design | N |
| No. Of Speeds | 1 |
| Output Power | 0.56 kW |
| Overall Length | 11 1/2" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 64 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 10" |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Nameplate Rpm | 1725 RPM |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 27 lbs. |
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
