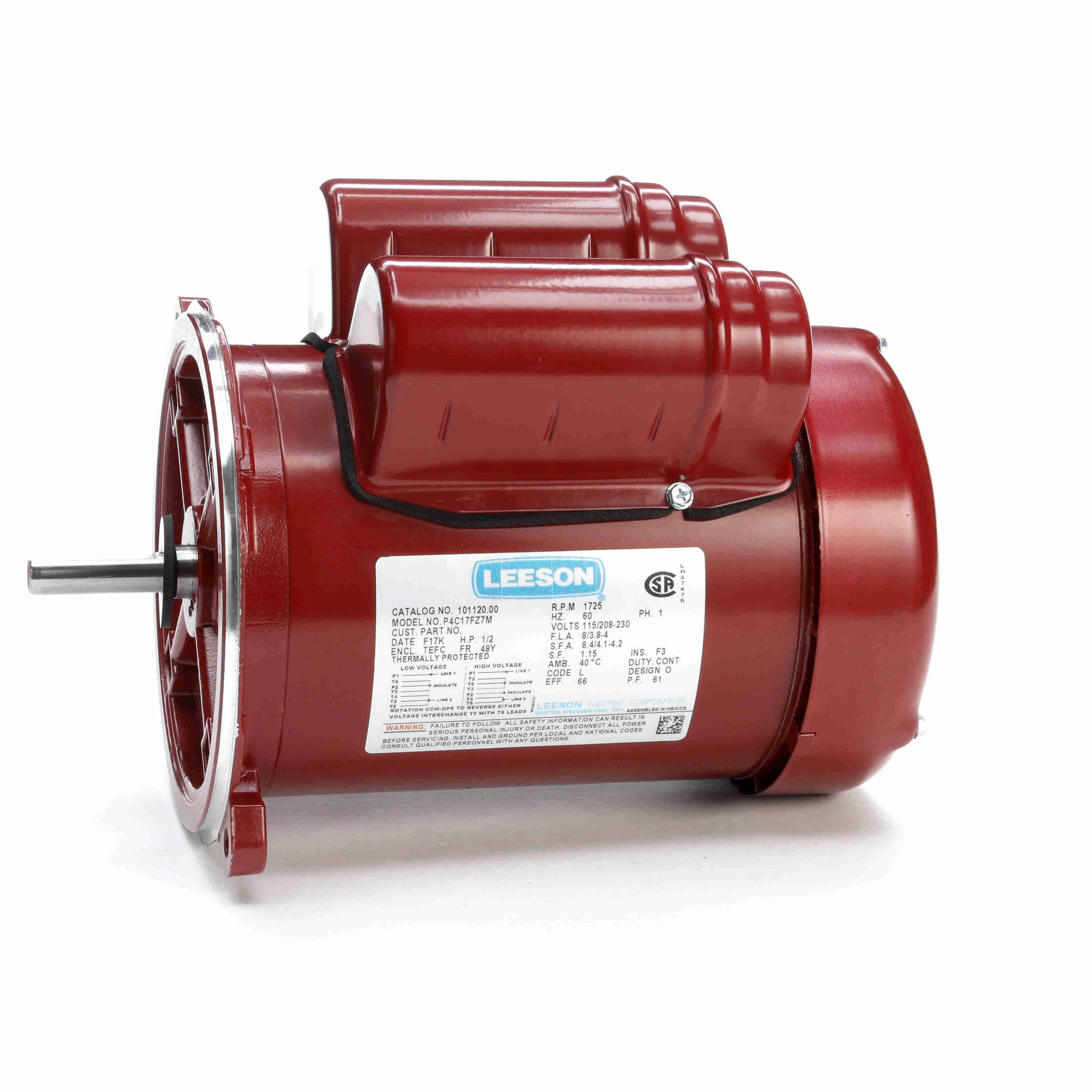

LEESON 101120.00 P4C17FZ7M / 60WC97 Auger Drive Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€480.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Assembly | LO101120 |
| Bearing Type | Ball |
| Bolt Circle Dia. | 7 1/4" |
| Code | L |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 8/4.4-4A |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 104°F |
| Motor Application | Auger |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | C Face, Footless |
| Nema Design | O |
| No. Of Speeds | 1 |
| Output Power | 0.37 kW |
| Overall Length | 13 4/5" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 61 |
| Service Factor | 1.15 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Thermal Protection | Manual |
| Type | CF |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
