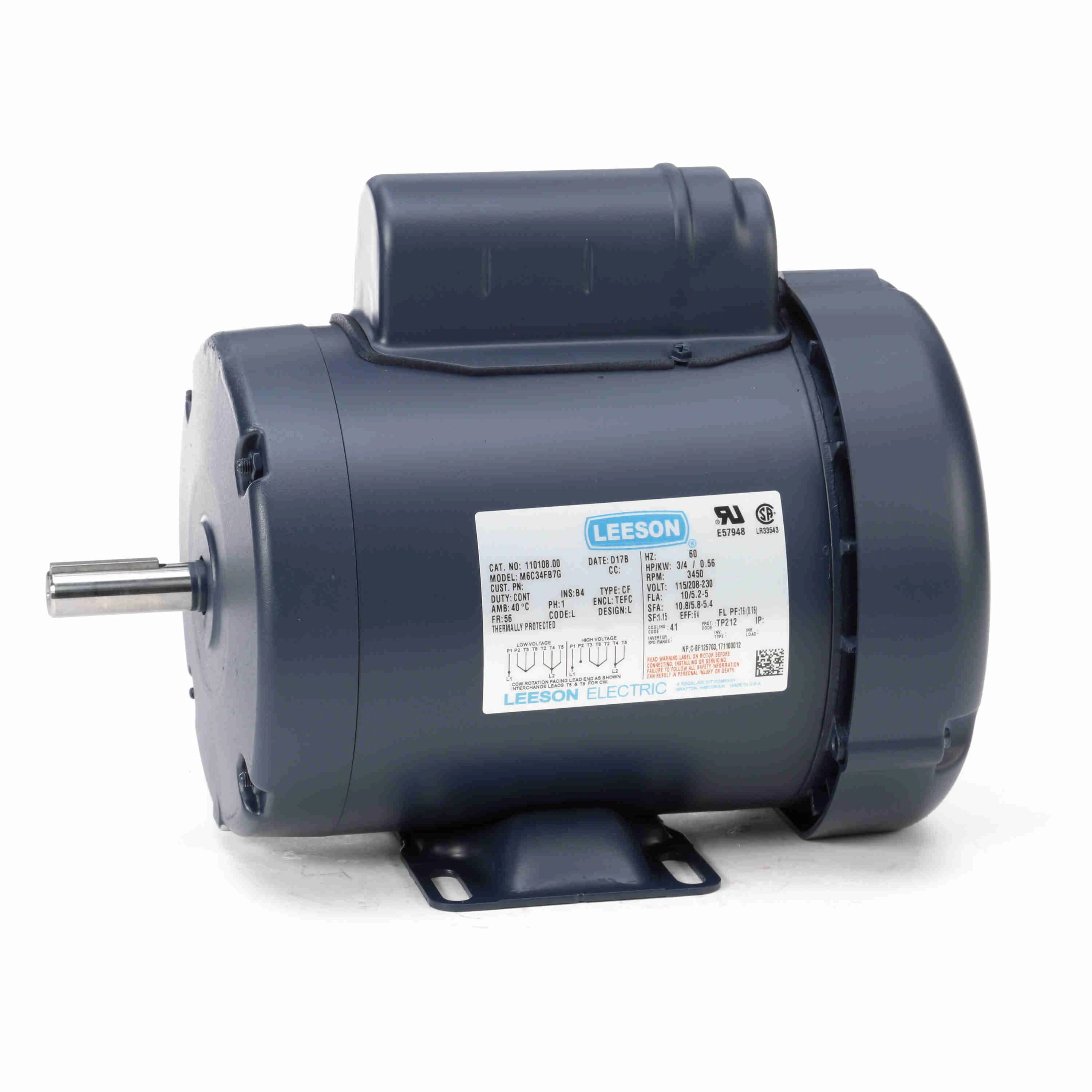

LEESON 110108.00 M6C34FB7G General Purpose Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Wednesday, Jun 18
€481.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Totally Enclosed Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Code | L |
| Duty Cycle | Continuous |
| Efficiency | 64% |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10/5.2-5A |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp |
| Includes | Key |
| Insulation Class | Class B |
| Inverter Rated | No |
| Lubrication | Polyrex EM |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | L |
| No. Of Speeds | 1 |
| Output Kw | 0.56 kW |
| Overall Length | 11 1/2" |
| Packaging | B |
| Part Winding Start Capable | No |
| Phase | 1 |
| Power Factor | 76 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1.5 yrs. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 9 9/16" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Nominal Efficiency | 64% |
| Removable Base | Permanently Lubricated Bearings |
| Standards | CSA, UL |
| Weight | 29 lbs. |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Enclosure | Frame | Full Load Amps | HP | Insulation Class | Item | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
92116 | - | L | TEFC | 42 | 4.2 / 2.1 | 1/6 | B | Single Phase Motor | €437.16 | |
 |
100955 | LO100955 | N | TEFC | 48 | 6.6 / 2.9-3.3 | 1/3 | B | Single Phase Motor | €400.36 | |
 |
102013 | LO102013 | N | TEFC | 48 | 3.8 / 1.8-1.9 | 1/6 | B | Single Phase Motor | €521.91 | |
 |
102016 | LO102016.00 | N | TEFC | 48 | 5.6 / 2.5-2.8 | 1/3 | B | Single Phase Motor | €345.16 | |
 |
102018 | LO102018 | N | TEFC | 48 | 6.6 / 2.9-3.3 | 1/3 | B | Single Phase Motor | €459.46 | |
 |
102020 | LO102020 | N | TEFC | 48 | 7 / 3.4-3.5 | 1/2 | B | Single Phase Motor | €393.11 | |
 |
110013 | - | N | TEFC | 56 | 10.8 / 5.4 | 3/4 | B | Single Phase Motor | €543.67 |
