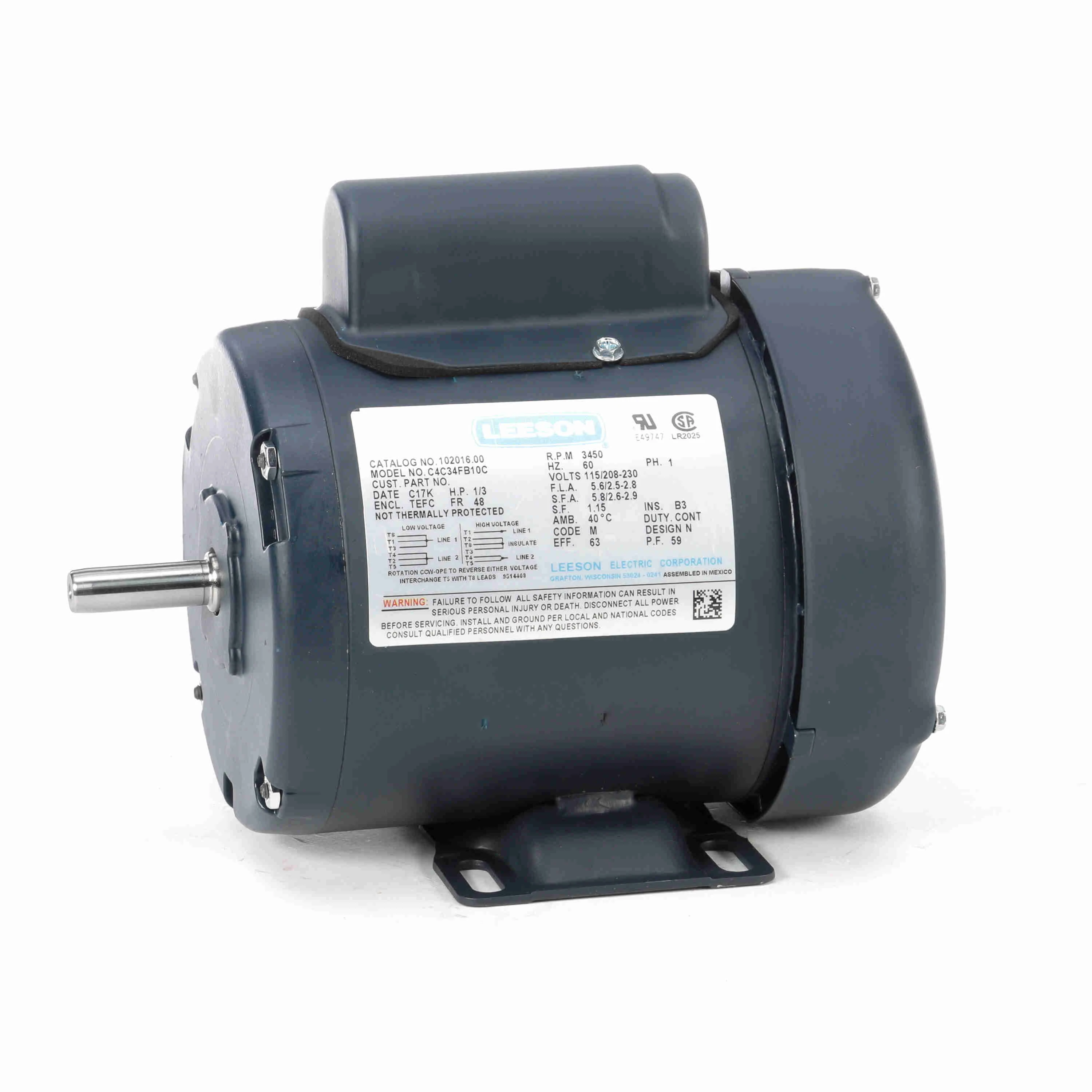

LEESON 102016.00 C4C34FB10C General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Tuesday, Jun 17
€345.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Code | M |
| Duty Cycle | Continuous |
| Frame | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 5.6/2.5-2.8A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | M, N |
| Output Kw | 0.25 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 59 |
| Service Factor | 1.15 |
| Shaft Dia. | 1/2" |
| Type | CF |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
| Product | Model | Assembly | Design | Enclosure | Frame | Full Load Amps | HP | Insulation Class | Item | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
92116 | - | L | TEFC | 42 | 4.2 / 2.1 | 1/6 | B | Single Phase Motor | €437.16 | |
 |
100955 | LO100955 | N | TEFC | 48 | 6.6 / 2.9-3.3 | 1/3 | B | Single Phase Motor | €400.36 | |
 |
102013 | LO102013 | N | TEFC | 48 | 3.8 / 1.8-1.9 | 1/6 | B | Single Phase Motor | €521.91 | |
 |
102018 | LO102018 | N | TEFC | 48 | 6.6 / 2.9-3.3 | 1/3 | B | Single Phase Motor | €459.46 | |
 |
102020 | LO102020 | N | TEFC | 48 | 7 / 3.4-3.5 | 1/2 | B | Single Phase Motor | €393.11 | |
 |
110013 | - | N | TEFC | 56 | 10.8 / 5.4 | 3/4 | B | Single Phase Motor | €543.67 | |
 |
110019 | 042502 | L | TEFC | 56H | 17.2 / 8.8-8.6 | 1.5 | B | Single Phase Motor | €883.25 |
