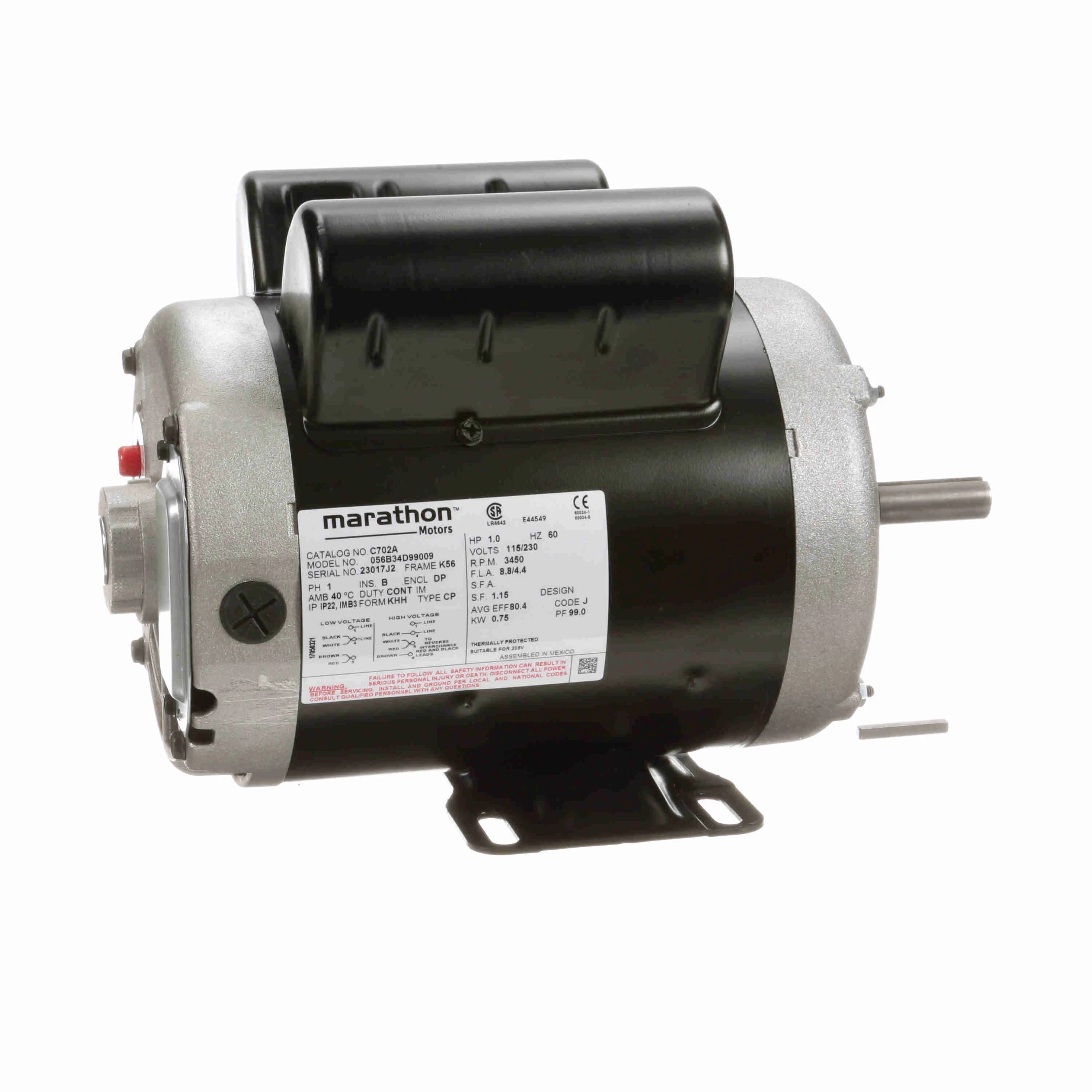

LEESON 056B34D99009 56B34D99009A / C702A General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Tuesday, Jun 17
€163.73 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Commercial Duty Air Compressor Motor |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Hp | 1 hp |
| Hz | 60 Hz |
| Includes | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 10 7/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nominal Efficiency | 65% |
| Number Of Speeds | 1 |
| Overall Length | 12 5/16" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Voltage | 115/230V AC |
| Full Load Amps | 8.8/4.4A |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Standards | CSA, UL LISTED |
| Weight | 31 lbs. |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 38.94 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
