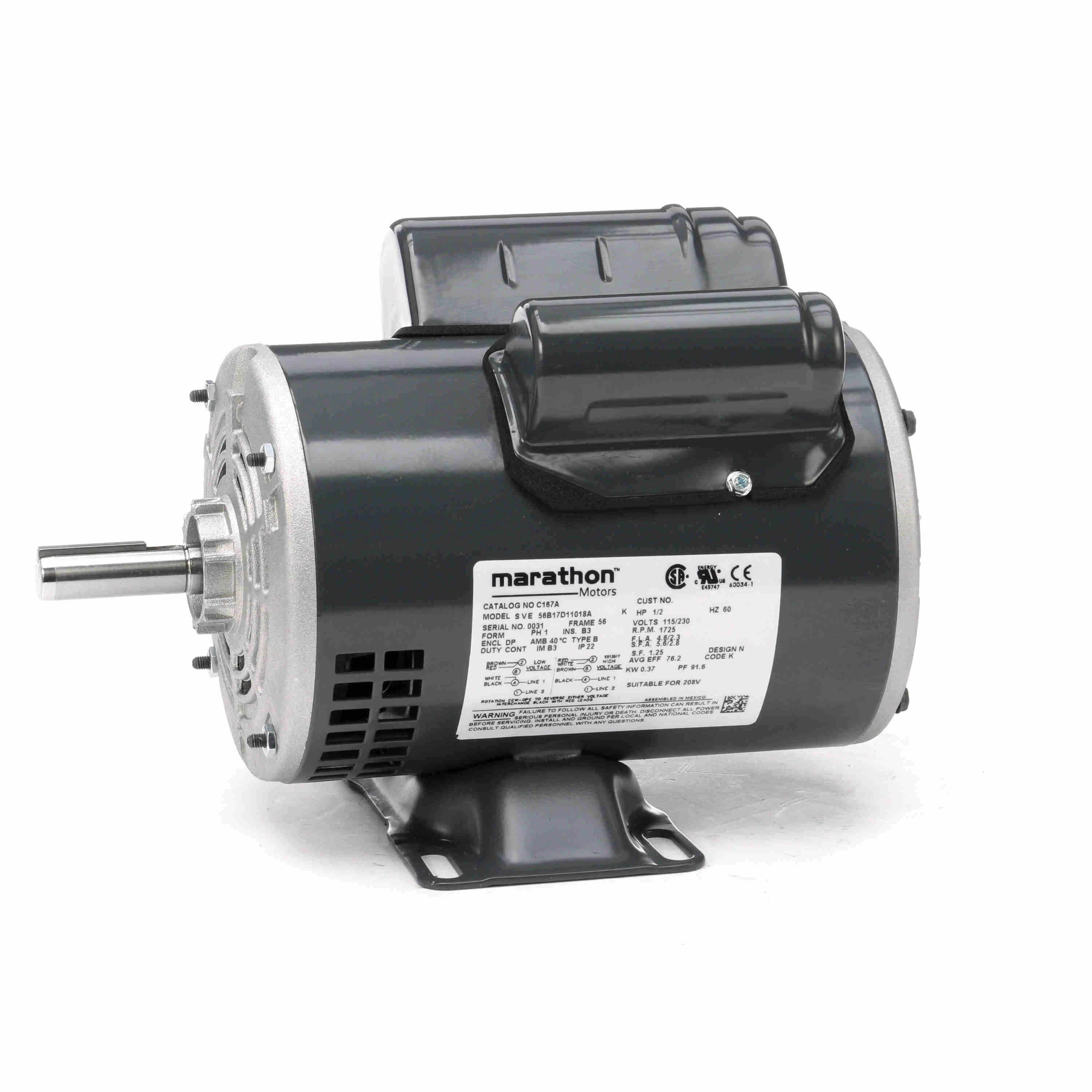

LEESON 056B17D11018 56B17D11018A / C167A General Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€439.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Inverter Rated | No |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Mounting Type | Rigid Base |
| Nominal Efficiency | 76.2% |
| Number Of Speeds | 1 |
| Overall Length | 11 1/2" |
| Phase | 1 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Full Load Amps | 4.6/2.3A |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Service Factor | 1.25 |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 23 lbs. |
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 24.43 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
056B17DRR70037A1 | Base | €807.49 | |
|
056B17DRR70036A1 | Base | €628.47 | |
|
056B17DRR70035A1 | Base | €679.08 | |
 |
056B34D99009 | Commercial Duty Air Compressor Motor | €163.73 | |
 |
056B17D11014 | General Purpose Motor | €469.80 | |
 |
056B34D11018 | General Purpose Motor | €300.65 | |
 |
056B17DRR70017A1 | General Purpose Motor | €722.29 |
