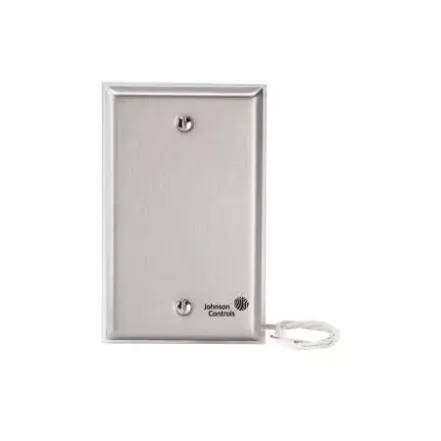

JOHNSON CONTROLS TE-6310F-0 Temperature Sensor Wallplate, With Logo, 4.5 Inch Height, 2 3/4 Inch Width
€78.01 /unit
Request a Quote
Payment
Payment
| Item | Temperature Sensor |
| Application | Temperature Monitoring |
| Cable Length | Not Applicable |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 4 1/2" |
| Housing Material | Steel |
| Housing Type | Flush Mount |
| Includes Temperature Sensor | Yes |
| Indoor/outdoor | Indoor |
| Material | Stainless Steel |
| Measurement Type | Single |
| No. Of Wires | 2 |
| Output | Not Applicable |
| Overall Height | 4 1/2" |
| Overall Width | 2 3/4" |
| Sensing Element Type | Nickel |
| Sensor Shape | Rectangle |
| Temp. Accuracy | -0.34°F to +0.34°F |
| Width | 2 3/4" |
| Display Type | None |
| Loop Resistance | 1000 ohms |
| Maximum Sensing Temperature | 220°F |
| Minimum Sensing Temperature | -50°F |
| Mounting Location | Wall Mount |
| Product Type | Temperature Sensor |
| Temperature Accuracy | +/-0.34°F |
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 11.43 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
| Model | Type | Price | |
|---|---|---|---|
| TE-6311M-1 | Nickel 1k ohm, Duct Mount Metal 8" | €42.06 | |
| TE-6311P-1 | Nickel 1k ohm, Duct Mount Plastic 8" | €175.86 | |
| TE-6311V-2 | Nickel 1k ohm, Flange 8" | €36.15 | |
| TE-6312M-1 | Nickel 1k ohm, Well, Metal, 8" | €73.91 | |
| TE-6312P-1 | Nickel 1k ohm, Well, Plastic, 8" | €86.20 | |
| TE-6314P-1 | Nickel 1k ohm, Wall Mount | €35.27 | |
| TE-6315P-1 | Nickel 1k ohm, Adjustable, Plastic | €172.05 |
