| Item | Control |
| Application | Heat And Cool |
| Bulb Dia. | 3/8" |
| Bulb Length | 5" |
| Capillary Length | 60" |
| Changeover Type | Manual |
| Depth | 1 13/16" , 1.812" |
| Differential Type | Adjustable, Fixed |
| Enclosure Material | Steel |
| Height | 3 1/8" |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 1 |
| Overall Depth | 1 13/16" |
| Overall Height | 3 1/8" |
| Overall Width | 1 9/16" |
| Sensor Location | Remote |
| Switch Action | Open On Rise/Close On Rise |
| Temp. Differential High | 1.5°F |
| Temperature Scale | Fahrenheit |
| Voltage | 121-277V AC |
| Bulb Diameter | 3/8" |
| Control Type | Concealed Adjustment, Knob |
| Electrical Connection Type | Screw Terminals |
| Frequency | 60 Hz |
| Full Load Amps @ 120v Ac | 6A |
| Full Load Amps @ 240v Ac | 3A |

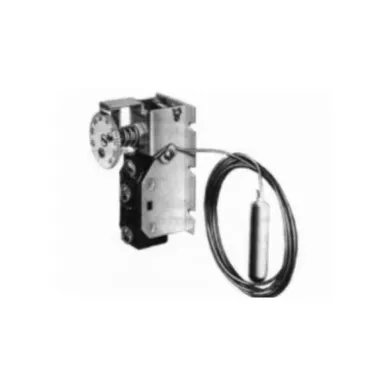

| Key Features | The A19 Temperature Control without Enclosure Features Single-Pole, Double-Throw (SPDT) Contacts for Open High or Open Low Applications |
| Locked Rotor Amps @ 120v | 36A |
| Locked Rotor Amps @ 240v | 18A |
| Maximum Operating Temperature | 90°F |
| Minimum Operating Temperature | 40°F |
| Mounting Type | Surface Mount |
| Number Of Poles | 1 |
| Operating Temperature Range | 40°F to 90°F |
| Pilot Duty Rating | 125 VA @ 24V AC to 277V AC |
| Resistive Amps @ 208v Ac | 15A |
| Standards | CULUS |
| Switch Type | SPDT |
| Temperature Differential | 1-1/2°F |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 7.94 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 3.97 |
| Country of Origin | MX |
