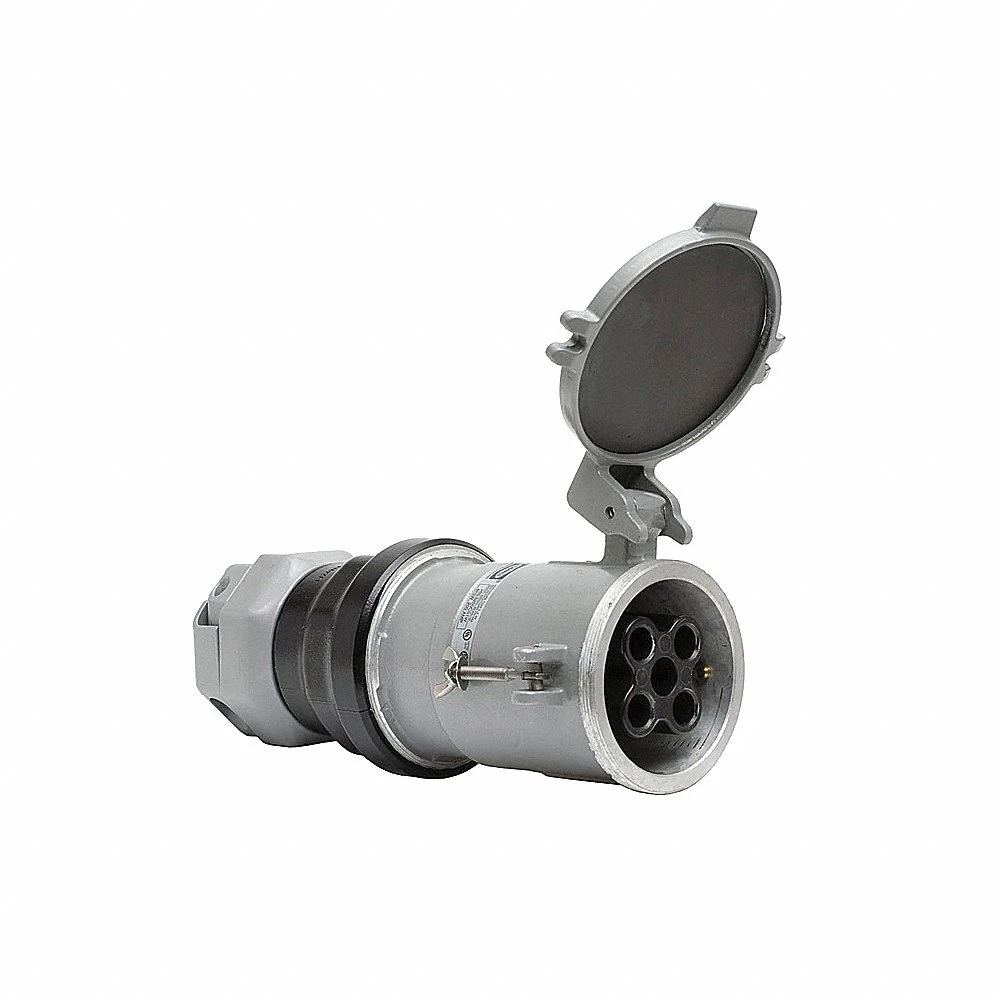

HUBBELL WIRING DEVICE-KELLEMS HBL5200CS1W Pin and Sleeve
Get it by Tuesday, Jun 17
€2,250.48 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pin and Sleeve Connector |
| Amps | 200A |
| Conductor Size | #1 mcm to #250 mcm |
| Exposure Conditions | Wateright |
| Material | Composite |
| Mounting Style | Cord |
| Number Of Conductors | 5 |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Cap Type | Spring Loaded Cap |
| Compatible With Series | UL 1686 Class 1 Insulgrip |
| Connection Orientation | Straight |
| Current Rating | 200A |
| Face Diameter | 6.7" |
| Features | Pin Chamber Confines Arcing within the Interior Chamber, Spring Loaded, Gasketed Cover for Dust Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal |
| For Maximum Cable Diameter | 2.5" |
| For Minimum Cable Diameter | 1" |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Housing Color | Black, Gray |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1 AWG |
| Minimum Operating Temperature | -40°C |
| Nema Enclosure Rating | 4X |
| Outside Diameter | 7.39" |
| Overall Length | 13.65" |
| Power Indicating Light | No |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED C22.2 NO. 182.1, UL 1682, UL LISTED AND CSA CERTIFIED TYPE 4X |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC/250V DC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 6.48 |
| Ship height (cm) | 18.77 |
| Ship length (cm) | 34.67 |
| Ship width (cm) | 18.77 |
| Country of Origin | US |
| Product | Model | Color | Current Rating | Number Of Poles | Number Of Wires | Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|
 |
HBLS330C4W | Yellow | 30 A | 2 | 3 | 125 VAC | €779.43 | |
 |
HBLS330C6W | Blue | 30/32 A | 2 | 3 | - | €779.43 | |
 |
HBLS330C7W | Red | 30 A | 2 | 3 | 480 VAC | €779.43 | |
|
HBLS332C4W | Yellow | 32 A | 2 | 3 | 100 - 130 VAC | €779.43 | |
|
HBLS360C4W | Yellow | 60 A | 2 | 3 | 125 VAC | €1,198.48 | |
|
HBLS360C6W | Blue | 60/63 A | 2 | 3 | - | €1,198.48 | |
|
HBLS360C7W | Red | 60 A | 2 | 3 | 480 VAC | €1,198.48 |
