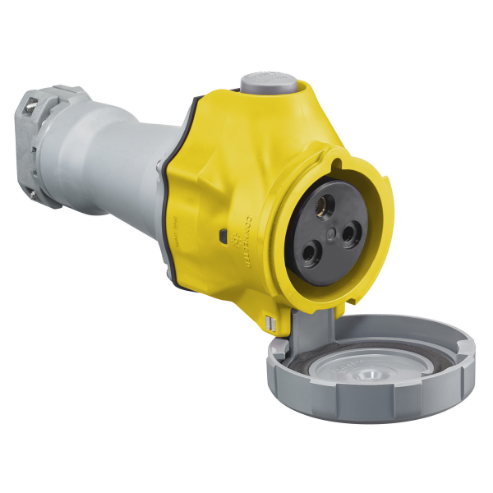

HUBBELL WIRING DEVICE-KELLEMS HBLS360C4W Watertight Pin And Sleeve Connector, 60A
Get it by Tuesday, Jun 17
€1,424.61 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pin and Sleeve Connector |
| Amps | 60A |
| Color | Yellow |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Cap Type | Spring Loaded Cap |
| Compatible With Series | Advantage Switch Rated |
| Connection Orientation | Straight |
| Contact Material | Beryllium Copper |
| Current Rating | 60A |
| Features | Spring Loaded Disconnect Button |
| For Environment | Wet |
| For Maximum Cable Diameter | 1.45" |
| For Minimum Cable Diameter | 0.5" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 3 hp |
| Housing Color | Yellow |
| Housing Material | PBT |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 8 AWG |
| Nema Enclosure Rating | 4X |
| Outside Diameter | 5.17" |
| Overall Length | 12.22" |
| Phase | Three |
| Power Indicating Light | Yes |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED LR280C, UL CLASSIFIED TO IEC 60309-1 IEC 60309-2, UL E146033 |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 12.45 |
| Ship length (cm) | 31.04 |
| Ship width (cm) | 14.22 |
| Country of Origin | US |
| Product | Model | Color | Current Rating | Number Of Poles | Number Of Wires | Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|
 |
HBL5200CS1W | - | 200 A | 4 | 5 | 600/250 VAC/VDC | €2,250.48 | |
|
HBLS330C4W | Yellow | 30 A | 2 | 3 | 125 VAC | €779.43 | |
 |
HBLS330C6W | Blue | 30/32 A | 2 | 3 | - | €779.43 | |
 |
HBLS330C7W | Red | 30 A | 2 | 3 | 480 VAC | €779.43 | |
|
HBLS332C4W | Yellow | 32 A | 2 | 3 | 100 - 130 VAC | €779.43 | |
|
HBLS360C6W | Blue | 60/63 A | 2 | 3 | - | €1,198.48 | |
|
HBLS360C7W | Red | 60 A | 2 | 3 | 480 VAC | €1,198.48 |
