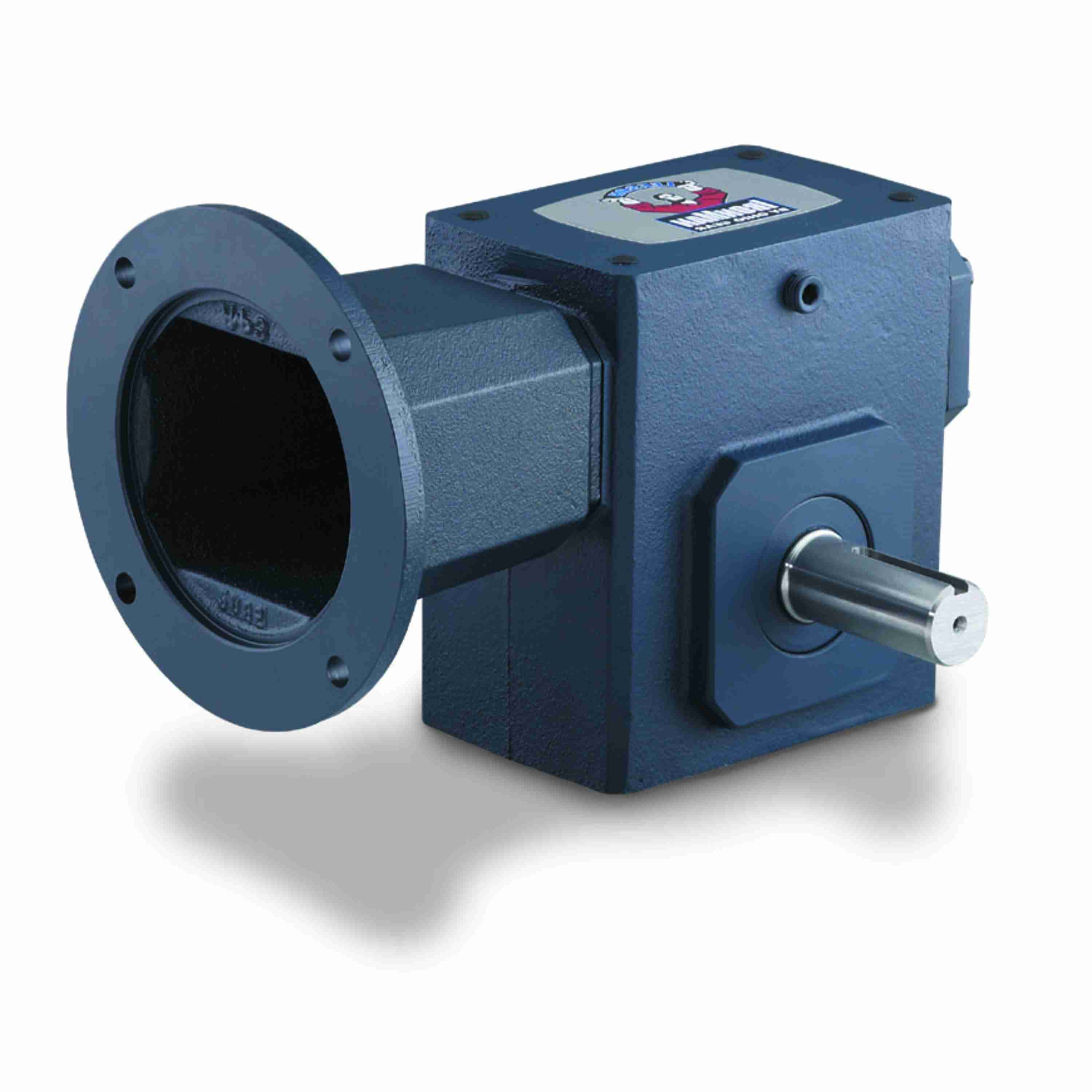

GROVE GEAR GRL8320084.00 GRL-BM832-25-R-180 Worm Reducer, 25:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron
Get it by Monday, Jun 16
€2,105.99 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Reducer |
| Assembly | BM-R |
| Center Distance | 3 1/4" |
| Frame | 180TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 4.373 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Keyway Size | 1/4" x 1/8" |
| Material | Cast Iron |
| Max Input Hp | 4 373/1000 hp |
| Max. Input Hp | 4.373 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 3/8" |
| Output Hp | 3.732 hp |
| Output Key Size | 5/16" x 2.63" |
| Output Rpm | 70 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 3/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2574 |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Torque | 3360 lbs.-in. |
| Overhung Load | 2275 lbs. |
| Product Line | GRL Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GRL Series |
| Series Style | GRL-BM-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 22/25" |
| Tap Size | 7/16"-14 |
| Thread Type | Coarse |
| Weight | 76 lbs. |
| Ship weight (kg) | 34.2 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
| Model | Price | |
|---|---|---|
| GRL8320033.00 | €2,105.99 | |
| GRL8320038.00 | €2,105.99 | |
| GRL8320039.00 | €2,105.99 | |
| GRL8320040.00 | €2,105.99 | |
| GRL8320058.00 | €2,105.99 | |
| GRL8320060.00 | €2,105.99 | |
| GRL8320062.00 | €2,105.99 |
