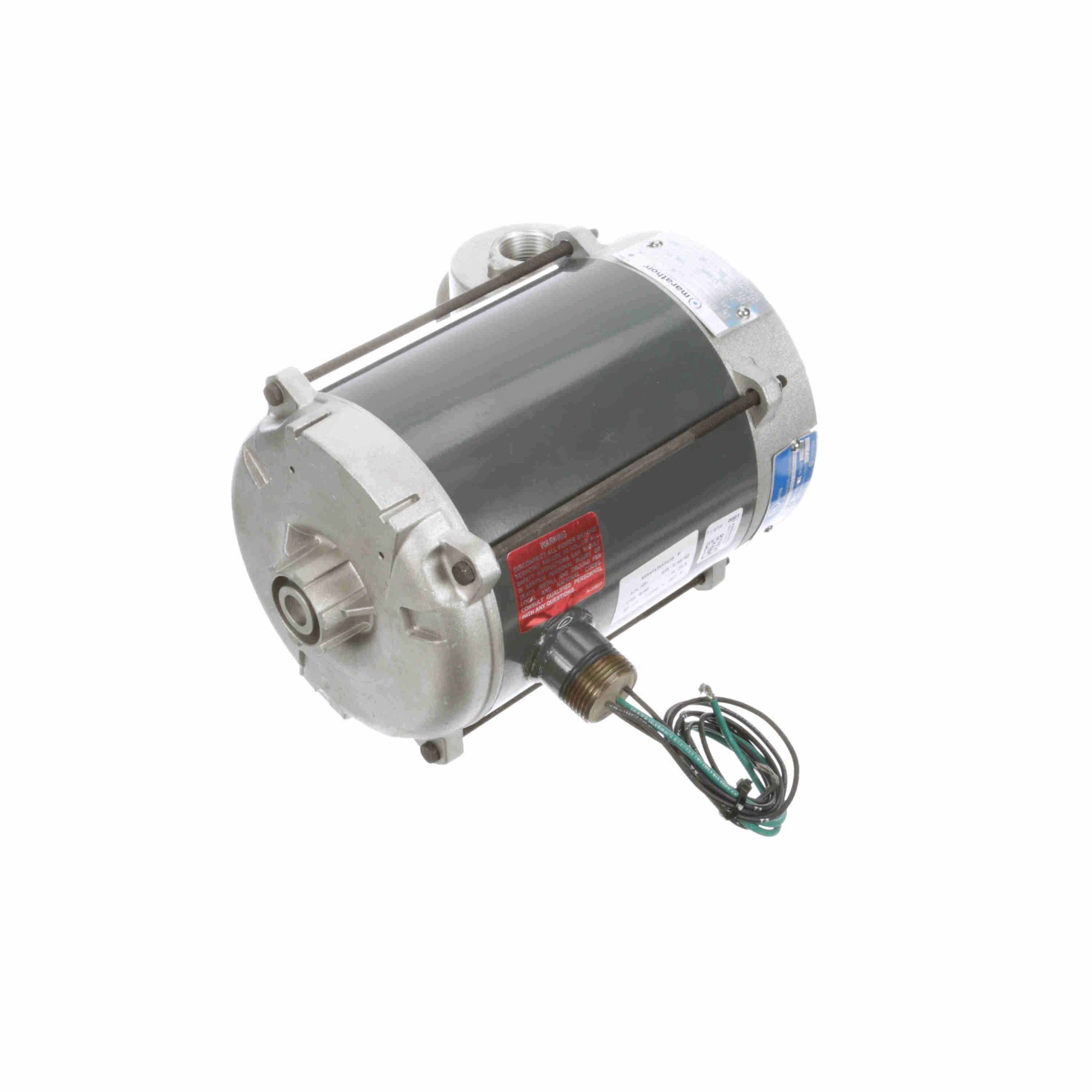

LEESON 056T17E5312 G842 / 56T17E5312D Explosion Proof Motor, 0.25 HP, 3 Phase, 60 Hz, 575 V, 1800 RPM
Get it by Friday, Jun 13
€844.53 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Enclosure Type | Explosion Proof Non Ventilated |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 0.44A |
| Hazardous Location Class | Class 1 C, Class D, Class 2 F, Class G |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Motor Mounting Position | Horizontal |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| Output Rating | 0.187 kW |
| Phase | 3 |
| Power | 0.187 kW |
| Service Factor | 1 |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Voltage | 575V AC |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 21.89 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Full Load Amps | Hazardous Location Class | HP | Item | Lead Length | Length Less Shaft | NEMA Design | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17E5311 | 1.2-1.2/0.60 | 1 C,D / 2 F,G | 1/3 | Hazardous Location Motor | 12" to 12" | 9 15/16" | None | 74.5% | €892.68 | |
 |
056T17G5315 | 2.3-2.4/1.2 | 1 C,D / 2 F,G | 1/2 | Hazardous Location Motor | 12" to 18" | 11.875" | None | 68% | €938.99 | |
 |
056T17E5310 | 1.1-1.1/.55 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 1/4 | Explosion Proof Motor | - | - | B | - | €844.53 |
