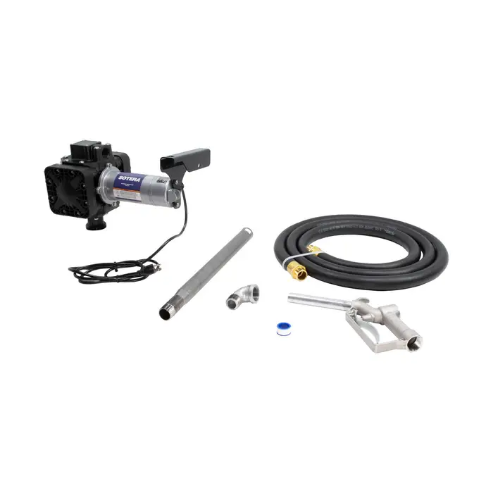

| Item | Diaphragm Pump |
| Application | For Transferring Fluids Such As Ethylene Glycol, Diesel Fuel, Grease, Hydraulic Oil, Kerosene, Motor Oil, Water |
| Compatible Chemicals | Hydraulic Oil, Light Oil, Lubricating Fluid, Medium Viscosity Liquids, Oil |
| Cord Length | 6.5 ft. |
| Display Qty | 1 |
| Duty Cycle | 30 min. On/30 min. Off |
| For Container Size | 330 gal. |
| Full Load Amps | 2.5A |
| Height Above Container | 12 1/4" |
| Hose Length | 12 ft. |
| Hose Material | Nitrile |
| Hose Outside Dia. | 1" |
| Housing Material | Polypropylene |
| Hp | 1/4 hp |
| Includes | Hose, Manual Nozzle, Metal Bung Mount, Steel Suction Pipe |
| Includes Nozzle | Yes |
| Includes Suction Tube | Yes |
| Max. Flow Rate | 13 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Head Pressure | 15 psi |
| Max. Outlet Pressure | 15 psi |
| Max. Viscosity | 30 SUS |
| Media Type | Lubricating Fluid, Medium Viscosity Liquids, Oil |
| Motor Speed | 2600 RPM |
| Mounting Type | Bung |
| Nozzle Material | Aluminum |
| Nozzle Operation | Manual |
| Overall Length | 14" |
| Plug Type | NEMA 15 |
| Power Source | Electric |
| Rated Voltage | 115V AC |
| Self Priming | Yes |
| Type | Diaphragm |
| Width | 8 3/4" |
| For Media Type | Lubricating Fluid, Medium Viscosity Liquids, Oil |
| Hose Tube Material | Nitrile |
| Housing Material - Pumps | Polypropylene |
| Motor Hp | 1/4 hp |
| Motor Rpm | 2600 RPM |
| Motor Type | Diaphragm |
| Mount Type | Bung |
| Nominal Voltage | 115V AC |
| Self-priming | Yes |
