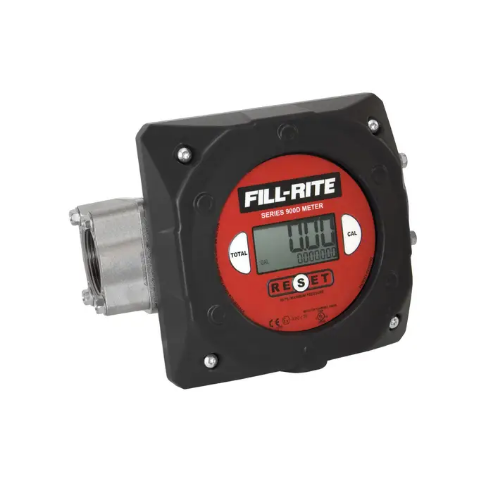

FILLRITE 900CD1.5 Liquid Mechanical Flowmeter, Nutating Disc Mechanism | AC4RXR 30J079

FILLRITE 900CD1.5 Liquid Mechanical Flowmeter, Nutating Disc Mechanism

In Stock
Item: AC4RXR Model: 900CD1.5Cross Ref: 30J079
Check Availability
See variants (10)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€852.94 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemFlowmeter
Accuracy+/- 125 %
Chamber MaterialNiclel Plated Aluminium
Connection Size1-1/2 MNPT
Displaydigital Register with Large Easy-to-read Numbers
Fitting1-1/2" NPT
Flow MaterialGasoline, Diesel Fuel, Light oil, Kerosene, Stoddard Fluids
Flow Range6 to 40 gpm
GPM Max.40
Height8"
Housing MaterialNickel Plated Aluminum
InsertNickel Plated Aluminum
Length8"
Master TotalizerYes
Max. Pressure50 psi
Max. Temp.140 F
Max. Viscosity50 SSU
O-RingBuna/Viton
Seal MaterialBuna/Viton
Temp.140 Degrees F
ThreadNPT
TypeNutating Disk
Width8"

Shipping Info:

Ship weight (kg) 4.01
Ship height (cm)20.32
Ship length (cm)20.32
Ship width (cm)20.32
HS code9026104000
Country of OriginUS

Product Details:

  • Fill-Rite 900CD1.5 liquid mechanical flowmeter suitable for measuring the flow rate of viscous fluids and industrial fuels at 6 - 40 GPM
  • Features large,easy-to-read display with easily resettable calibration settings
  • Unique membrane keypad prevents ingress of moisture and offers continuous sealing to internal components in harsh conditions
  • Comes with a rotating aluminium housing allowing vertical and horizontal mounting for user convenience
  • UL listed, CE marked, IEC approved and ATEX compliant

Product Variants

ProductModelLengthAccuracyConnection SizeMax. ViscositySeal MaterialTemp.ThreadTypePrice
FILLRITE 807CN1 Liquid Mechanical Flowmeter, Viton Seal, FNPT Connection | AB2VRY 1P951 807CN18"+/-1.0 %1 MNPT50Viton150NPTLiquid€567.79
FILLRITE 900CD Digital Flow Meter, 50 PSI, NPT Threads, 6 - 40 GPM | AC4RXQ 30J078 900CD8"+/- 125 %1 MNPT50 SSUBuna/Viton140 Degrees FNPTNutating Disk€758.52
FILLRITE 900CDBSPT Liquid Mechanical Flowmeter, BSPT Threads, 1 Inch Pipe Size | AC4RXT 30J080 900CDBSPT8"+/- 125 %1 BSPT50 SSUBuna/Viton140 Degrees FBSPPNutating Disk€933.75
FILLRITE 900CD1.5BSPT Liquid Mechanical Flowmeter, 1-1/2 Inch BSPT Threads | AC4RXU 30J081 900CD1.5BSPT8"+/- 125 %1-1/2 BSPT50 SSUBuna/Viton140 Degrees FBSPPNutating Disk€933.75
FILLRITE 807C1 Liquid Mechanical Flowmeter, 1 Inch MNPT Connection | AD9GBD 4RP91 807C18"+/-1.0 %1 MNPT50Viton(R) and Buna150NPTLiquid€416.44
FILLRITE 901C1.5 Liquid Mechanical Flowmeter, 1-1/2 Inch MNPT Connection | AD9GBE 4RP92 901C1.59.25"+/-2.0 %1-1/2 MNPT50Viton(R) and Buna150NPTLiquid€622.11
FILLRITE 807C Liquid Mechanical Flowmeter, 3/4 Inch FNPT Connection | AH2BQF 24KJ09 807C8"-3/4"-----€440.04
