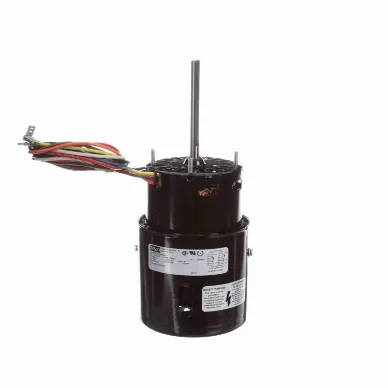

| Item | Motor |
| Capacitor Required | Included |
| Motor Design | Permanent Split Capacitor |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Reversible |
| Motor Thermal Protection | Automatic |
| Number Of Shafts | 1 |
| Stud Size | 8 |
| Ambient Temperature | 40C |
| Ce | N |
| Csa | Y |
| Current | 1.60/.080 A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Permanent Split Capacitor |
| Enclosure | Open Air Over |
| Frame | 3.3 |
| Frame Length | 4.45 in |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Insulation Class | B |
| Mounting | Extended Studs |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/8 Hp |
| Output Kw | 0.10 kW |
| Overall Length | 9.25 in |
| Phase | 1 |
| Poles | 4 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Diameter | 0.313 in |
| Shaft Extension | 3.56 in |
| Shaft Type | Flat |
| Speed | 1550 rpm |
| Starting Method | Across The Line |
| Thermal Protection | Thermally Protected |
| Ul | Recognized |
| Voltage | 115/230 V |
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 13.67 |
| Country of Origin | MX |
