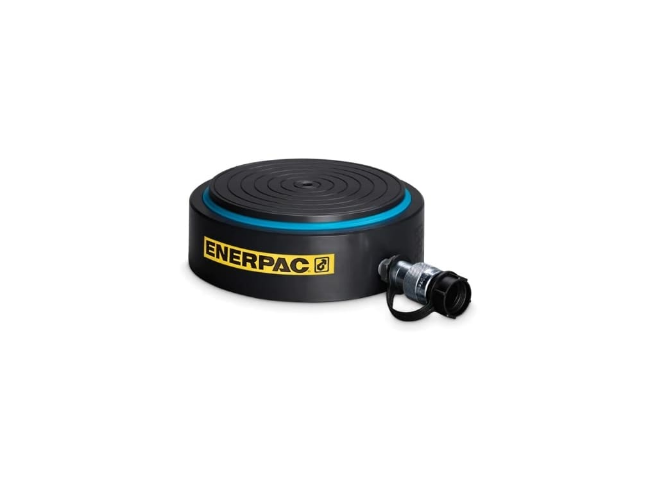

ENERPAC CUSP400 Ultra Flat Hydraulic Cylinder, 400 Ton
Get it by Wednesday, Jun 18
€7,408.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | 400 |
| Collapsed Height A (in) | 3.05 |
| Collapsed Height A (mm) | 77.5 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 572,6 |
| Cylinder Effective Area Advance (in2) | 88.75 |
| Extended Height B (in) | 3.63 |
| Extended Height B (mm) | 87,5 |
| Material | Steel |
| Maximum Cylinder Capacity Advance (kn) | 4008 |
| Maximum Cylinder Capacity Advance (short Tons) | 450.5 |
| Maximum Operating Pressure (psi) | 10,150 |
| Oil Capacity Advance (cm3) | 837 |
| Oil Capacity Advance (in3) | 51.01 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Load Return |
| Stroke (in) | 0.57 |
| Stroke (mm) | 14.6 |
| Surface Treatment | Nitride |
| Tilted Stroke (in) | 0.39 |
| Tilted Stroke (mm) | 10 |
| Tilting Degrees | 2 |
| Ship weight (kg) | 52.7 |
| Ship height (cm) | 7.75 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
