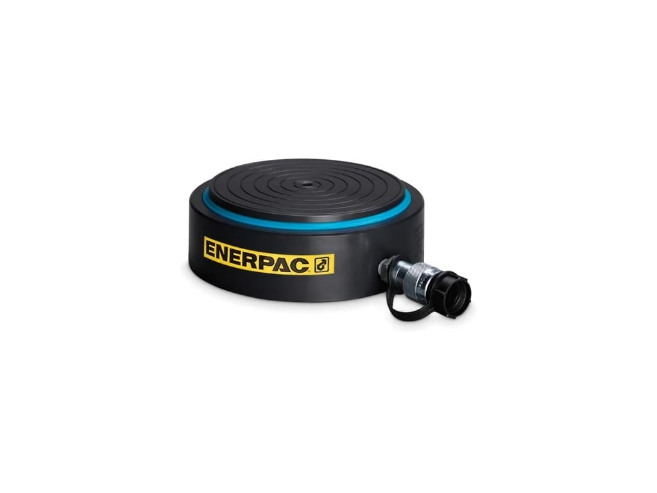

ENERPAC CUSP250 Ultra Flat Hydraulic Cylinder, 250 Ton
Get it by Wednesday, Jun 18
€4,458.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | 250 |
| Collapsed Height A (in) | 2.85 |
| Collapsed Height A (mm) | 72.5 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 363,1 |
| Cylinder Effective Area Advance (in2) | 56.28 |
| Extended Height B (in) | 3.46 |
| Extended Height B (mm) | 82,5 |
| Material | Steel |
| Maximum Cylinder Capacity Advance (kn) | 2542 |
| Maximum Cylinder Capacity Advance (short Tons) | 285.6 |
| Maximum Operating Pressure (psi) | 10,150 |
| Oil Capacity Advance (cm3) | 569 |
| Oil Capacity Advance (in3) | 34.34 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Load Return |
| Stroke (in) | 0.61 |
| Stroke (mm) | 15.5 |
| Surface Treatment | Nitride |
| Tilted Stroke (in) | 0.39 |
| Tilted Stroke (mm) | 10 |
| Tilting Degrees | 3 |
| Ship weight (kg) | 31.5 |
| Ship height (cm) | 7.24 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 8.38 |
| Country of Origin | US |
