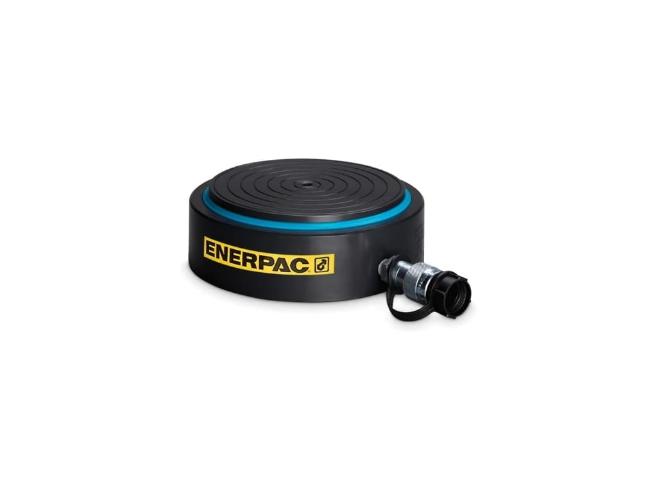

ENERPAC CUSP1000 Ultra Flat Hydraulic Cylinder, 1000 Ton
Get it by Tuesday, Jun 17
€15,947.91 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | 1000 |
| Collapsed Height A (in) | 4.06 |
| Collapsed Height A (mm) | 103 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 1452,2 |
| Cylinder Effective Area Advance (in2) | 225.09 |
| Extended Height B (in) | 4.74 |
| Extended Height B (mm) | 113,0 |
| Material | Steel |
| Maximum Cylinder Capacity Advance (kn) | 10165 |
| Maximum Cylinder Capacity Advance (short Tons) | 1142.6 |
| Maximum Operating Pressure (psi) | 10,150 |
| Oil Capacity Advance (cm3) | 2531 |
| Oil Capacity Advance (in3) | 154.20 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Load Return |
| Stroke (in) | 0.69 |
| Stroke (mm) | 17.4 |
| Surface Treatment | Nitride |
| Tilted Stroke (in) | 0.39 |
| Tilted Stroke (mm) | 10 |
| Tilting Degrees | 2 |
| Ship weight (kg) | 179.1 |
| Ship height (cm) | 10.31 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 11.68 |
| Country of Origin | US |
