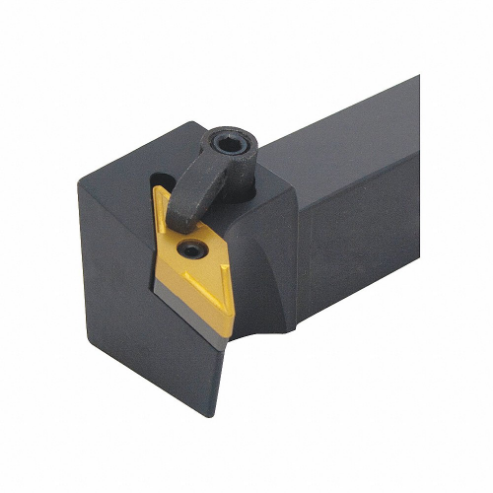

DORIAN MVLNL16-4D Turning Toolholder Vnmg Lh
Get it by Tuesday, Jun 17
€140.29 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Turning Toolholder |
| Ansi Number | MVLNL16-4D |
| Clamp | CL-30 |
| Clamp Screw | XNS-510 |
| Cutting Direction | Left Hand |
| Inscribed Circle | 1/2" |
| Insert Screw | NL-46 |
| Insert Shape | 35 Degrees Diamond |
| Lead Angle | -5° |
| Mounting Style | Multi Lock |
| Overall Length | 6" |
| Rake | Negative |
| Rake Angle | 4° |
| Shank | Square |
| Shank Height | 1" |
| Shank Width | 1" |
| Shim | IVSN-433 |
| Style | MVLNL16-4D |
| Type | VNMG Holder |
| Width Offset | 1 3/4" |
| Ansi Code | MVLNL164D |
| Cutting Application | Turning |
| Cutting Height | 1" |
| Features | Hardened to 44 HRC |
| Head Length | 1 1/2" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 1/2" |
| Insert Size | 432 |
| Insert Style | VNM |
| Iso Number | MVLNL164D |
| Shank Material | Alloy Steel |
| Side Cutting Edge Angle | -5° |
| Toolholder Style | MVLN |
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 3.81 |
| HS code | 7318190000 |
| Country of Origin | US |
| Model | Ansi Number | Clamp | Clamp Screw | Cutting Direction | Inscribed Circle | Insert Screw | Insert Shape | Item | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MCKNR12-4B | MCKNR12-4B | CL-20 | XNS-48 | Right Hand | 0.5" | NL-46 | 80 Degrees Diamond | Turning Toolholder | €92.58 | |
| MCKNR16-4C | MCKNR16-4C | CL-20 | XNS-48 | Right Hand | 0.5" | NL-46 | 80 Degrees Diamond | Turning Toolholder | €102.60 | |
| MCKNR16-4D | MCKNR16-4D | CL-20 | XNS-48 | Right Hand | 0.5" | NL-46 | 80 Degrees Diamond | Turning Toolholder | €102.60 | |
| MCKNL16-4D | MCKNL16-4D | CL-20 | XNS-48 | Left Hand | 0.5" | NL-46 | 80 Degrees Diamond | Turning Toolholder | €102.60 | |
| MCKNR20-4D | MCKNR20-4D | CL-20 | XNS-48 | Right Hand | 0.5" | NL-46 | 80 Degrees Diamond | Turning Toolholder | €112.69 | |
| MCKNL20-4D | MCKNL20-4D | CL-20 | XNS-48 | Left Hand | 0.5" | NL-46 | 80 Degrees Diamond | Turning Toolholder | €112.69 | |
| MCKNR20-5D | MCKNR20-5D | CL-9 | XNS-59 | Right Hand | 0.625" | NL-58 | 80 Degrees Diamond | Turning Toolholder | €135.24 |
