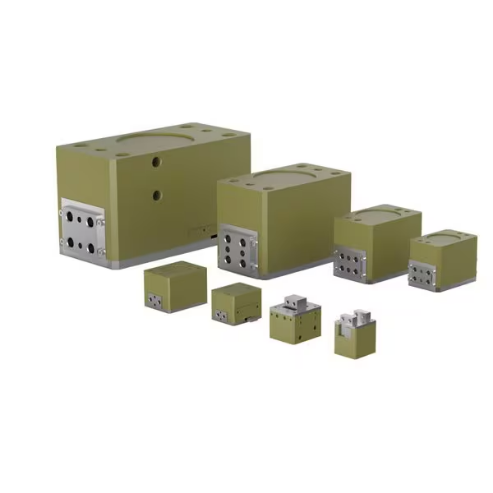

| Item | Gripper |
| Action Type | Double |
| Bore Size | 10 mm |
| Closed Width | 16 mm |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 25 mm |
| Max. Pressure | 100 psi |
| Mfr. Series | RPMC |
| Opening Width | 20.8 mm |
| Opening/closing Stroke | 4.8 mm |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | M2 |
| Seal Material | Buna N |
| Size | 2 |
| Total Grip Force | 36N |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 40 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 24 mm |
| Overall Height | 25.5 mm |
| Overall Length | 16 mm |
| Overall Width | 24 mm |
| Series | RPMC Series |
| Stroke Length | 4.8 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.55 |
| Ship length (cm) | 1.6 |
| Ship width (cm) | 2.4 |
| Country of Origin | US |
