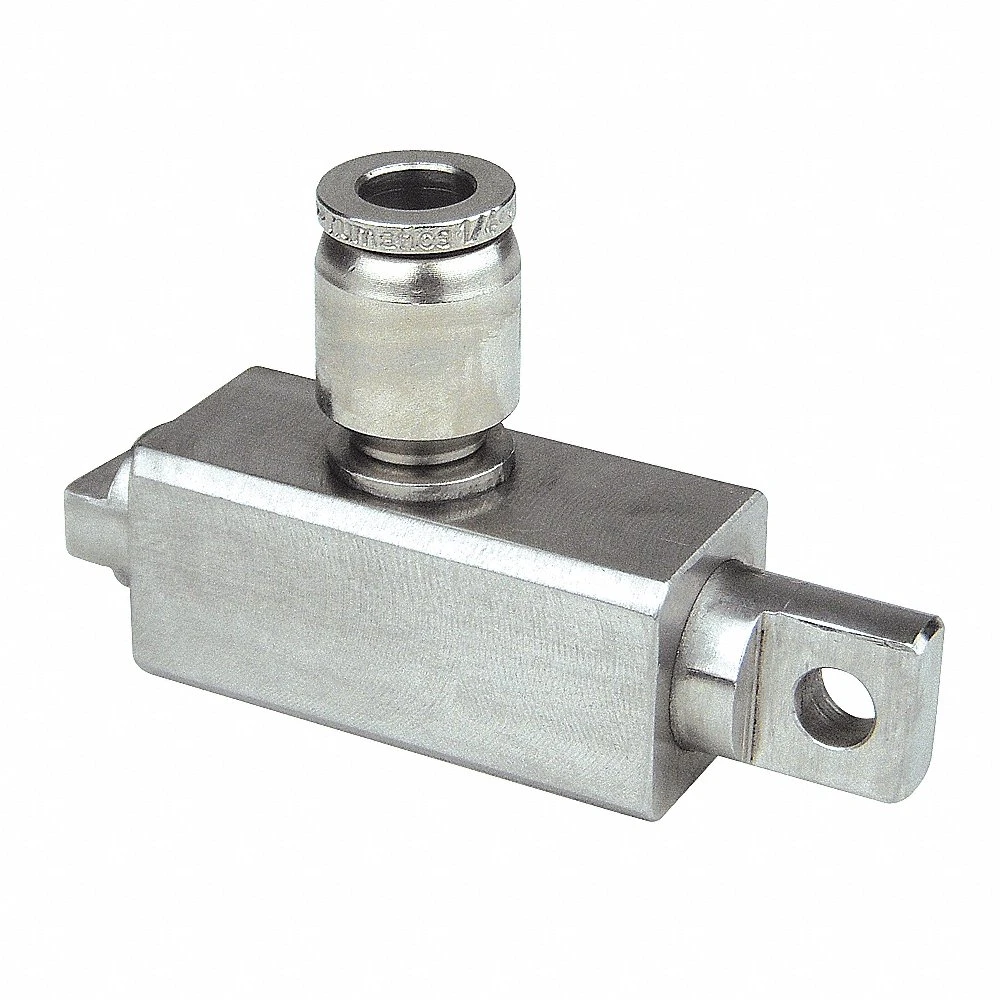

| Item | Miniature Piston Vibrator , Pneumatic Vibrator |
| Bin Weight Capacity | 100 lbs. |
| Cfm @ 60 Psi | 2.3 CFM |
| Cfm @ 80 Psi | 2 CFM |
| Db @ 60 Psi | 95 dBA |
| Duty | Intermittent |
| Force Rating | 15 lbs. |
| Max. Pressure | 80 psi |
| Max. Temp. | 200°F |
| Mounting | Universal |
| Mounting Plate | No |
| Outlet Port | #10-32 |
| Overall Height | 1 1/4" |
| Overall Length | 2.187" |
| Overall Width | 5/8" |
| Speed @ 60 Psi | 13500 VPM |
| Speed @ 80 Psi | 16000 VPM |
| Vibrator Type | Piston |
| Air Flow Rate | 2 CFM @ 80 psi |
| Application | Chemical Plants, Filling Machines, Manufacturing, Packaging, Parts Tracks, Pharmaceutical |
| Compatible Muffler Grainger Part Number | 1EJX3 |
| Duty Cycle | Intermittent |
| Features | Dual Diameter Piston Allows for Mounting at any Angle, Tight Tolerance Bore and Spring Less Design |
| Force @ Psi | 15 lbf. @ 80 psi |
| Housing Material | Stainless Steel |
| Housing Material Grade | 304 |
| Includes | Grade 5 Mounting Hardware, Push-Fit Hose Connection |
| Inlet Connection | 3/4" x 1/4" |
| Maximum Force | 15 lbf. |
| Maximum Inlet Pressure | 80 psi |
| Maximum Operating Temperature | 200°F |
| Maximum Vibration Speed | 13500 VPM |
| Mount Type | End |
| Outlet Connection | #10-32 UNF |
| Pneumatic Vibrator Type | Piston |
| Series | VM Series |
| Sound Level | 95 dbA |
| Vibration Speeds @ Psi | 13500 VPM @ 60 psi, 16000 VPM @ 80 psi |
| Weight | 0.2 lbs. |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.39 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 1.6 |
| HS code | 8412390080 |
| Country of Origin | US |
