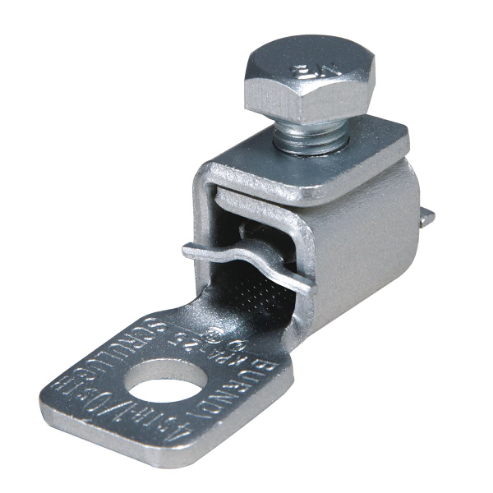

BURNDY KPA8C Terminal 14AWG 0.95In
Get it by Tuesday, Jun 17
€3.68 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Terminal |
| Body Material | Copper |
| Compatible With Product Type | Copper Cable |
| Connection Orientation | Compact |
| Connector Type | Terminal |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size | 8 AWG |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Head Type | Slotted |
| Hole Dia. | 0.21" |
| Hole Spacing | Not Applicable |
| Length | 0.95" |
| Length (straight Wireway) | 0.95" |
| Material | Copper |
| Max. Conductor Size | 8 AWG |
| Min. Conductor Size | 14 AWG |
| No. Of Conductors | 1 |
| Number Of Conductors | 1 |
| Number Of Holes | 1 |
| Overall Depth | 3/8" |
| Special Features | One Piece Design, Pressure Bar |
| Stud Size | 0.1" |
| Terminal Material | Copper |
| Tongue Width | 0.38" |
| Type | Commercial |
| Width | 18/25" |
| For Stranded Copper Wire Size - Maximum | 8 AWG |
| Head Style | Slotted |
| Hole Diameter | 0.21" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Pieces | 1 |
| Number Of Terminations | 1 |
| Overall Length | 0.97" |
| Overall Width | 18/25" |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Length | 0.47" |
| Tongue Thickness | 0.06" |
| Torque | 25 lbs.-in. |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.83 |
| Ship length (cm) | 2.46 |
| Ship width (cm) | 0.97 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Length | Max. Conductor Size | Min. Conductor Size | Stud Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|
|
KPA8CTP | 1.04" | 6 AWG | 14 AWG | #10 | 0.81" | €5.37 | |
 |
KPA4CTP | 1.28" | 4 AWG | 14 AWG | 1/4" | 1" | €4.91 | |
 |
KPA4C | 1.21" | 4 AWG | 14 AWG | 1/4" | 0.94" | €8.00 | |
|
KPA25 | 1.7" | 1/0 AWG | 4 AWG | 5/16" | 1.25" | €25.44 | |
 |
KPA4CUNPL | 1.21" | 4 AWG | 14 AWG | 1/4" | 0.94" | €7.18 | |
|
KPA28 | 2.3" | 4/0 AWG | 1/0 AWG | 3/8" | 1.66" | €30.21 | |
|
KPA34 | 3.14" | 500 kcmil | 4/0 AWG | 1/2" | 2.44" | €72.40 |
