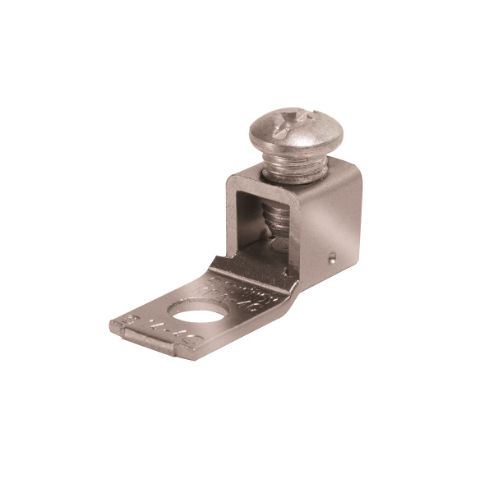

BURNDY KPA4CTP Terminal 14AWG 1.28In
Get it by Tuesday, Jun 17
€4.91 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Terminal |
| Body Material | Copper |
| Color | Bare |
| Compatible With Product Type | Copper Cable |
| Connection Orientation | Compact |
| Connector Type | Terminal |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size | 4 AWG |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| For Stud Size | 1/4" |
| Head Type | Slotted |
| Hole Dia. | 7/25" |
| Hole Spacing | Not Applicable |
| Length | 1 7/25" |
| Length (straight Wireway) | 1 7/25" |
| Material | Copper |
| Max. Conductor Size | 4 AWG |
| Min. Conductor Size | 14 AWG |
| No. Of Conductors | 1 |
| Number Of Conductors | 1 |
| Number Of Holes | 1 |
| Overall Depth | 1/2" |
| Special Features | Easy Installation, Long Lasting, One Piece Design, Superior Torque And Pull Out Performance |
| Strip Length | 9/16" |
| Stud Size | 1/4" |
| Terminal Material | Copper |
| Tongue Width | 1/2" |
| Type | Commercial |
| Width | 1" |
| Color Code | Bare |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Head Style | Slotted |
| Hole Diameter | 0.28" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Pieces | 1 |
| Number Of Terminations | 1 |
| Overall Length | 1.28" |
| Overall Width | 1" |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Length | 0.71" |
| Tongue Thickness | 0.07" |
| Torque | 45 lbs.-in. |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.25 |
| Ship width (cm) | 2.54 |
| HS code | 8535908020 |
| Country of Origin | MX |
| Product | Model | Length | Max. Conductor Size | Min. Conductor Size | Stud Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|
 |
KPA8CTP | 1.04" | 6 AWG | 14 AWG | #10 | 0.81" | €5.37 | |
 |
KPA4C | 1.21" | 4 AWG | 14 AWG | 1/4" | 0.94" | €8.00 | |
|
KPA8C | 0.95" | 8 AWG | 14 AWG | 1/10" | 0.72" | €3.68 | |
|
KPA25 | 1.7" | 1/0 AWG | 4 AWG | 5/16" | 1.25" | €25.44 | |
 |
KPA4CUNPL | 1.21" | 4 AWG | 14 AWG | 1/4" | 0.94" | €7.18 | |
|
KPA28 | 2.3" | 4/0 AWG | 1/0 AWG | 3/8" | 1.66" | €30.21 | |
|
KPA34 | 3.14" | 500 kcmil | 4/0 AWG | 1/2" | 2.44" | €72.40 |
