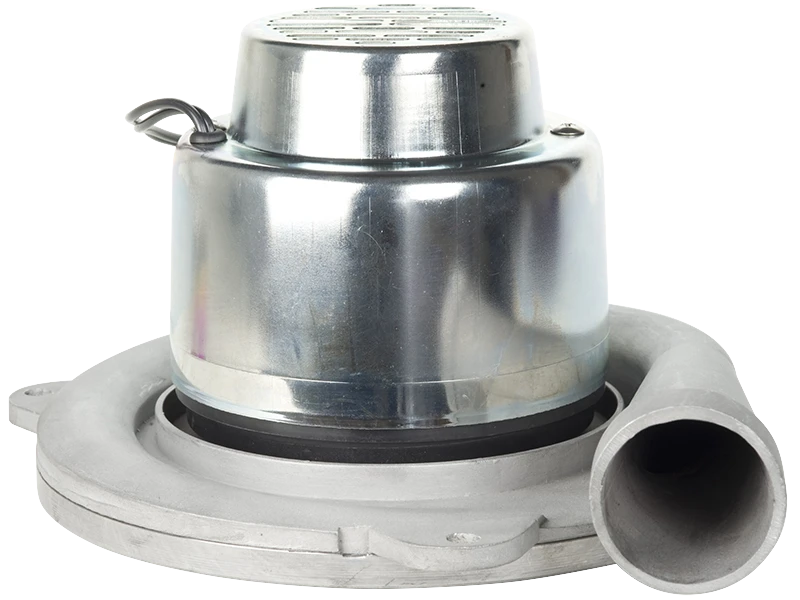

| Item | Vacuum Motor |
| Ambient Temp. | 40°C |
| Average Life | 1500 hrs. |
| Bearing Type | Ball |
| Blower Stages | 1 |
| Body Dia. | 8 2/5" |
| Cfm @ 2-in. Orifice | 166 CFM |
| Discharge | Tangential Bypass |
| Duty Cycle | Intermittent |
| Efficiency Group | High |
| Frequency | 60 Hz |
| Full Load Amps | 15.1A |
| Insulation Class | Class A |
| Max. Air Watts | 717 W |
| Max. Amps | 15.1A |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor/blower Type | Bypass |
| Mounting Bracket Material | Aluminum |
| Mounting Type | Lug |
| No. Of Speeds | 1 |
| Nominal Efficiency | 45% |
| Overall Height | 6" |
| Phase | 1 |
| Replacement Brushes | Mfr. No. 50-5954 |
| Thermal Protection | None |
| Vacuum (h2o Sealed) | 110 |
| Vacuum Rating | 110 |
| Voltage | 120V AC |
| Ship weight (kg) | 4.07 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 21.34 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Voltage | Max. Amps | Blower Stages | Enclosure | CFM @ 2-In. Orifice | Price | |
|---|---|---|---|---|---|---|---|---|
 |
122049-00 | 120 VAC | 10.5 | 4 | Open | 60 | €343.21 | |
 |
116136-00 | 240 VAC | 5.5 | 3 | Open | 87 | €279.93 | |
 |
115684 | 240 VAC | 5.9 | 2 | Open | 101.2 | €325.65 | |
 |
116409-13 | 36 VDC | 15.1 | 2 | Open | 77 | €312.02 | |
 |
116420-13 | 240 VAC | 4.4 | 2 | Open | 108 | €221.65 | |
|
116520-50 | 120 VAC | 5.7 | 1 | Open | 93 | €155.26 | |
 |
122173-18 | 24 VDC | 16.6 | 1 | Open | 91 | €426.85 |
