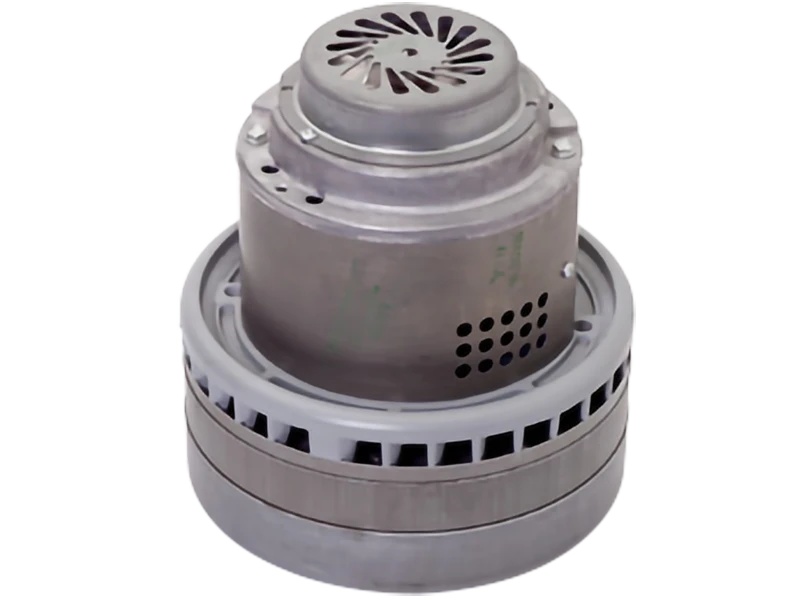

| Item | Vacuum Motor |
| Ambient Temp. | 40°C |
| Average Life | 500 hrs. |
| Bearing Type | Ball |
| Blower Stages | 2 |
| Body Dia. | 7 1/5" |
| Cfm @ 2-in. Orifice | 94 CFM |
| Discharge | Peripheral Bypass |
| Duty Cycle | Intermittent |
| Frequency | 50/60 Hz |
| Full Load Amps | 12.7A |
| Insulation Class | Class A |
| Max. Air Watts | 406 W |
| Max. Amps | 8.6A |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor/blower Type | Bypass |
| Mounting Bracket Material | Thermoset Plastic |
| Mounting Type | Lug |
| Nameplate Rpm | 21425 RPM |
| No. Of Speeds | 1 |
| Overall Height | 7 1/2" |
| Overall Length | 7 5/16" |
| Phase | 1 |
| Replacement Brushes | Mfr. No. 33410-5 |
| Thermal Protection | None |
| Vacuum (h2o Sealed) | 134 |
| Vacuum Rating | 134.1 |
| Voltage | 120V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class A |
| Max. Ambient Temp. | 40°C |
| Motor Application | Universal AC, DC Motor |
| Motor Bearings | Ball |
| Motor Thermal Protection | None |
| Mounting Brackets | Thermoset |
| Standards | UL RECOGNIZED (E47185) |
| Ship weight (kg) | 3.83 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 18.57 |
| Ship width (cm) | 18.29 |
| HS code | 8501204000 |
| Country of Origin | MX |
| Product | Model | Voltage | Max. Amps | Blower Stages | Enclosure | CFM @ 2-In. Orifice | Price | |
|---|---|---|---|---|---|---|---|---|
 |
114787 | 120 VAC | 11.6 | 3 | Open Dripproof | 126 | €593.34 | |
 |
116155-00 | 24 VDC | 14.4 | 2 | Open Dripproof | 66.4 | €352.12 | |
 |
116156-00 | 36 VDC | 10.8 | 2 | Open Dripproof | 70.7 | €354.84 | |
|
115419 | 42 VDC | 30 | 3 | Open Dripproof | 126 | €1,163.48 | |
|
114789 | 240 VAC | 5.2 | 3 | Open Dripproof | 122 | €694.92 | |
|
114589 | 230 VAC | 5 | 2 | Open Dripproof | 123 | €2,439.38 | |
|
114788 | 240 VAC | 4.8 | 2 | Open Dripproof | 146 | €1,063.74 |
