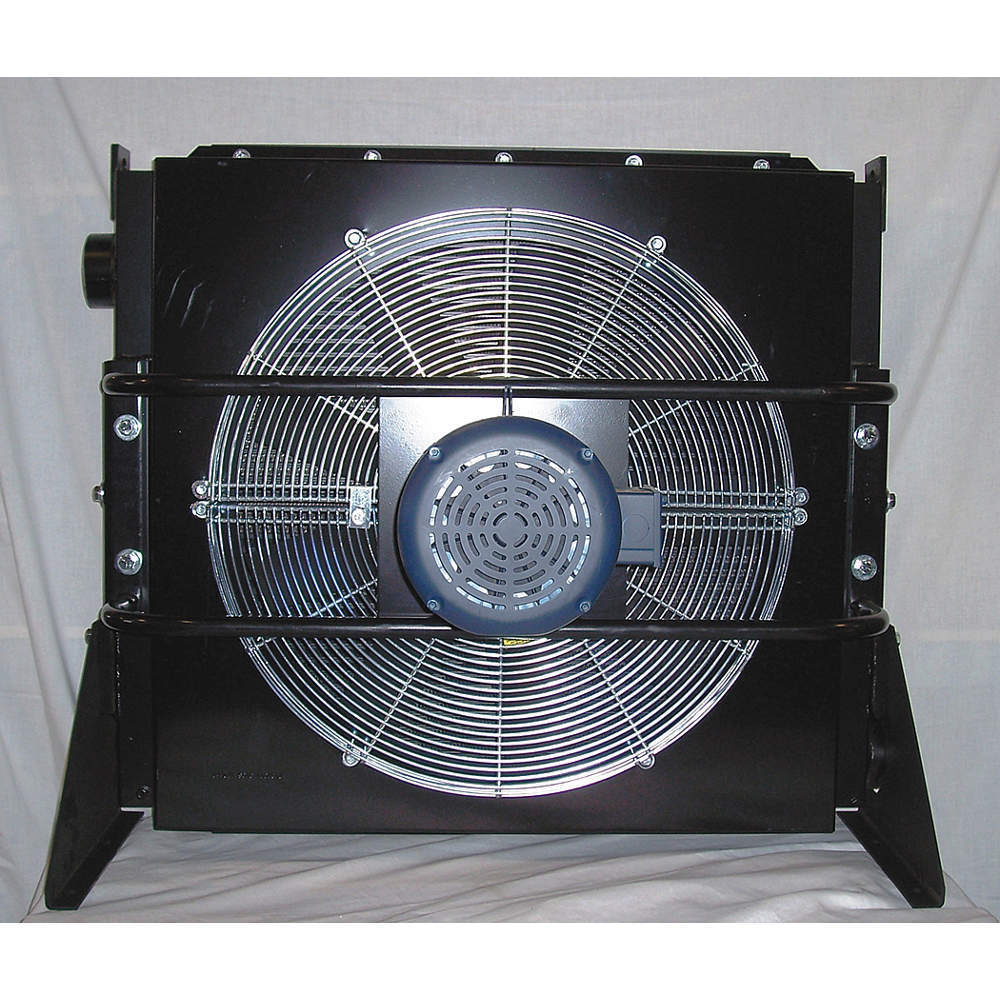

AKG CC3500-3 Air Aftercooler Max Hp 1000 4800 Cfm
Get it by Tuesday, Jun 17
€31,500.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Air Cooled Aftercooler |
| Depth | 33.82" |
| Height | 57.87" |
| Max. Amps | 26/13A |
| Max. Flow Cfm @ 100 Psi | 4800 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 350°F |
| Min. Pressure | 60 psi |
| Tube Material | Aluminum |
| Voltage | 230/460V |
| Width | 52 19/25" |
| Air Inlet Size | 4" |
| Air Inlet Type | NPT |
| Air Outlet Connection Type | NPT |
| Air Outlet Size | 4" |
| Construction | Aluminum |
| Cooling Method | Air |
| Current Rating | 26A |
| Features | Reduced Air Slide Fouling |
| Fin Material | Aluminum |
| For Use With | Rotary Air Compressor |
| Frequency | 60 Hz |
| Includes | Mounting Legs |
| Junction Box Design | Single Point Electrical |
| Maximum Air Flow | 4800 CFM |
| Maximum Compressor Output Power | 850 hp |
| Maximum Fan Horsepower | 10 hp |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Pressure | 60 psi |
| Overall Depth | 33 13/16" |
| Overall Height | 57 13/16" |
| Overall Width | 52 3/4" |
| Phase | Three |
| Shell Material | Steel |
| Standards | CSA CERTIFIED, UL LISTED |
| Ship weight (kg) | 290.25 |
| Ship height (cm) | 146.84 |
| Ship length (cm) | 85.88 |
| Ship width (cm) | 133.99 |
| HS code | 8419505000 |
| Country of Origin | US |
| Product | Model | Depth | Height | Max. Amps | Max. Temp. | Voltage | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
CC100-1 | 14.72" | 12.64" | 5.2/2.6 | 350 F | 115/230 | 15.94" | €3,024.00 | |
 |
CC200-1 | 15.59" | 16.3" | 7/3.5 | 350 F | 115/230 | 19.88" | €3,619.80 | |
 |
C-1835BG | 1.77" | 5.55" | - | 400 F | - | 15.94" | €384.62 | |
 |
C-3560BG | 1.77" | 6.77" | - | 400 F | - | 15.94" | €429.59 | |
 |
C-70100BG | 1.77" | 9.17" | - | 400 F | - | 17.91" | €529.45 | |
 |
CC1600-3 | 24.76" | 35.9" | 13.2/6.6 | 350 F | 230/460 | 40.94" | €17,209.80 | |
 |
CC2500-3 | 30.28" | 44.25" | 19.6/9.8 | 350 F | 230/460 | 48.82" | €23,909.40 |
