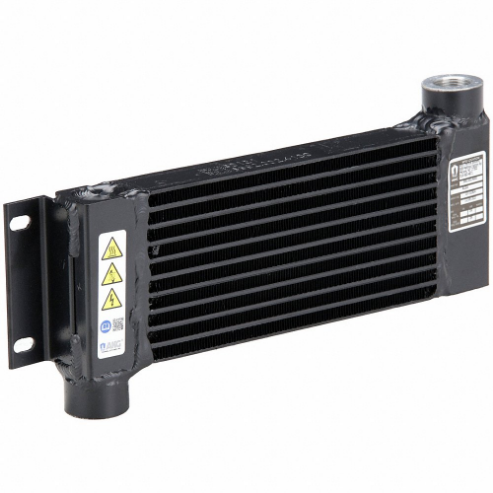

| Item | Air Cooled Aftercooler |
| Depth | 1.77" |
| Height | 6.77" |
| Max. Flow Cfm @ 100 Psi | 60 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 400°F |
| Min. Pressure | 60 psi |
| Tube Material | Aluminum |
| Width | 15.94" |
| Air Inlet Size | 1" |
| Air Inlet Type | NPT |
| Air Outlet Connection Type | NPT |
| Air Outlet Size | 1" |
| Approach Temperature | 25°F |
| Construction | Aluminum |
| Cooling Method | Air |
| Features | Mount Directly To Compressor'S Belt Guard Utilizing Compressor Pulley'S Air Flow For Cooling |
| Fin Material | Aluminum |
| For Use With | Compressor Beltguard |
| Includes | Universal Mounting Bracket |
| Maximum Air Flow | 60 CFM |
| Maximum Compressor Output Power | 15 hp |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Pressure | 60 psi |
| Overall Depth | 1 3/4" |
| Overall Height | 6 3/4" |
| Overall Width | 15 15/16" |
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 40.48 |
| HS code | 8419505000 |
| Country of Origin | US |
| Product | Model | Depth | Height | Max. Amps | Max. Temp. | Voltage | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
CC100-1 | 14.72" | 12.64" | 5.2/2.6 | 350 F | 115/230 | 15.94" | €3,024.00 | |
 |
CC200-1 | 15.59" | 16.3" | 7/3.5 | 350 F | 115/230 | 19.88" | €3,619.80 | |
 |
C-1835BG | 1.77" | 5.55" | - | 400 F | - | 15.94" | €384.62 | |
 |
C-70100BG | 1.77" | 9.17" | - | 400 F | - | 17.91" | €529.45 | |
 |
CC1600-3 | 24.76" | 35.9" | 13.2/6.6 | 350 F | 230/460 | 40.94" | €17,209.80 | |
 |
CC2500-3 | 30.28" | 44.25" | 19.6/9.8 | 350 F | 230/460 | 48.82" | €23,909.40 | |
 |
CC3500-3 | 33.82" | 57.87" | 26/13 | 350 F | 230/460 | 52.76" | €31,500.00 |
