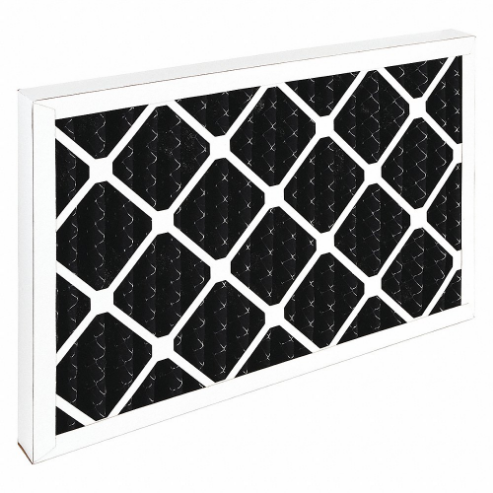

| Item | Activated Carbon Air Filter |
| Air Flow Rate | 250 FPM |
| Final Resistance | 1 in. wc |
| Frame | Yes |
| Initial Resistance | 0.48 in. wc |
| Max. Flow Rate | 500 FPM |
| Max. Temp. | 180°F |
| Nominal Depth | 1" |
| Nominal Height | 14" |
| Nominal Width | 24" |
| Prefilter | Polyester |
| Actual Depth | 3/4" |
| Actual Filter Size | 13 1/2" x 23 3/8" x 3/4" |
| Actual Height | 13 1/2" |
| Actual Width | 23 3/8" |
| Air Flow @ 300 Fpm | 700 CFM |
| Air Flow @ 500 Fpm | 1167 CFM |
| Carbon Concentration | 20 g/sq. ft. |
| Ccl4 Activity | 60% |
| Common Applications | Nuisance Odor Removal |
| Filter Efficiency - Air Filters | 25% |
| Filters Out | Odor Removal |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.19 in. wc |
| Initial Resistance @ 500 Fpm | 0.32 in. wc |
| Max. Velocity | 500 FPM |
| Media Area | 3.5 sq. ft. |
| Media Color | Black |
| Media Material | Impregnated Carbon |
| Nominal Filter Size | 14" x 24" x 1" |
| Performance Rating | Odor Removal |
| Pleats Per Linear Foot | 9 |
| Recommended Final Resistance | 1 in. wc |
| Standards | ASHRAE |
| Style - Air Filters | Panel |
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 61.98 |
| Ship length (cm) | 36.58 |
| Ship width (cm) | 11.43 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Air Flow | Final Resistance | Frame | Initial Resistance | Max. Air Flow | Max. Temp. | Nominal Depth | Nominal Filter Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2GGX8 | 500 fpm | 1.5" WC | Yes | 0.60" WC | 500 fpm | 180 Degrees F | 12" | 24x24x12 | 1 | €1,164.69 | |
 |
2GGY3 | 500 fpm | 1.5" WC | Yes | 0.60" WC | 500 fpm | 180 Degrees F | 12" | 12x24x12 | 1 | €729.34 | |
|
2GGY7 | 500 fpm | 1.5" WC | Yes | 0.60" WC | 500 fpm | 180 Degrees F | 12" | 12x24x12 | 1 | €645.86 | |
 |
2GJD5 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 1" | 24x24x1 | 1 | €279.26 | |
 |
2GJE4 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 2" | 24x24x2 | 1 | €211.24 | |
 |
2JTT4 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 1" | 16x25x1 | 1 | €202.66 | |
|
2JTU1 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 1" | 24x24x1 | 1 | €212.64 |
