Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

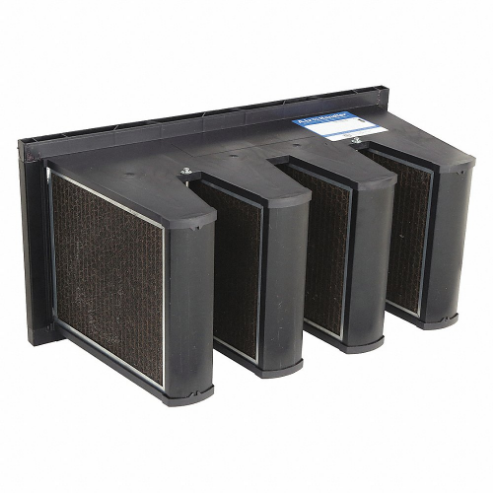

| Item | Activated Carbon Air Filter |
| Air Flow Rate | 500 FPM |
| Final Resistance | 1.5 in. wc |
| Frame | Yes |
| Initial Resistance | 0.6 in. wc |
| Max. Flow Rate | 500 FPM |
| Max. Temp. | 180°F |
| Nominal Depth | 12" |
| Nominal Height | 12" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 11 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 11 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 554 CFM |
| Air Flow @ 500 Fpm | 1000 CFM |
| Carbon Concentration | 0.49 g/mL |
| Ccl4 Activity | 60% |
| Common Applications | General Use |
| Filters Out | Exhaust Fumes |
| Frame Or Header Material | Plastic |
| Fully Incinerable | No |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.30 in. wc |
| Initial Resistance @ 500 Fpm | 0.50 in. wc |
| Max. Velocity | 500 FPM |
| Media Color | Black |
| Media Material | Active Carbon |
| Nominal Filter Size | 12" x 24" x 12" |
| Number Of Vs | 4 |
| Recommended Final Resistance | 1.5 in. wc |
| Standards | ASTM D-3474 |
| Style - Air Filters | Box |
| Ship weight (kg) | 8.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Air Flow | Final Resistance | Frame | Initial Resistance | Max. Air Flow | Max. Temp. | Nominal Depth | Nominal Filter Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2GGX8 | 500 fpm | 1.5" WC | Yes | 0.60" WC | 500 fpm | 180 Degrees F | 12" | 24x24x12 | 1 | €1,164.69 | |
|
2GGY3 | 500 fpm | 1.5" WC | Yes | 0.60" WC | 500 fpm | 180 Degrees F | 12" | 12x24x12 | 1 | €729.34 | |
 |
2GJD5 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 1" | 24x24x1 | 1 | €279.26 | |
 |
2GJE4 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 2" | 24x24x2 | 1 | €211.24 | |
 |
2JTT4 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 1" | 16x25x1 | 1 | €202.66 | |
|
2JTU1 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 1" | 24x24x1 | 1 | €212.64 | |
|
2JTU5 | 250 fpm | 1.00" WC | Yes | 0.48" WC | 500 fpm | 180 Degrees F | 2" | 12x24x2 | 1 | €206.54 |
