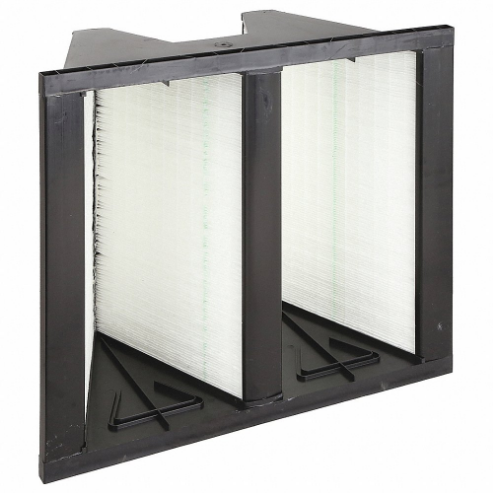

| Item | V-Bank Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 95% |
| Filter Pack Enclosure | Plastic Frame |
| Final Resistance | 1.5 in. wc |
| Initial Resistance | 0.35 in. wc, 0.52 in. wc, 0.70 in. wc |
| Max. Air Flow | 1920 CFM |
| Max. Temp. | 150°F |
| Media Area | 96 sq. ft. |
| Nominal Depth | 12" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1667 CFM |
| Air Flow @ 625 Fpm | 2083 CFM |
| Air Flow @ 750 Fpm | 2500 CFM |
| Filter Efficiency - Air Filters | 95% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Plastic |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 500 Fpm | 0.44 in. wc |
| Media Color | White |
| Media Material | Fiberglass |
| Nominal Filter Size | 20" x 24" x 12" |
| Number Of Vs | 2 |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µmto 1 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
