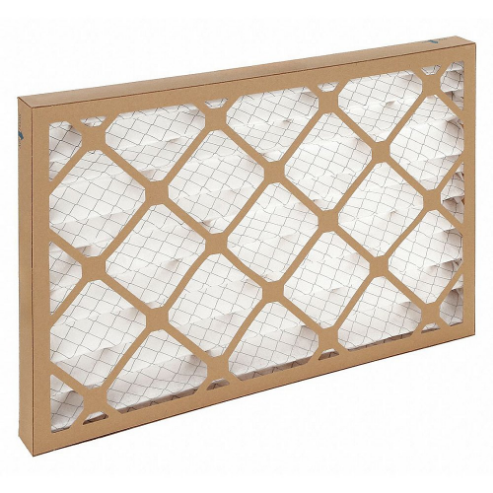

| Item | Standard Cap Pleated Filter |
| Actual Depth | 1 3/4" |
| Actual Height | 24 1/2" |
| Actual Width | 15 1/2" |
| Air Filter | Pleated Air Filter |
| Filter Type | Standard Capacity Pleated Filter |
| Final Recommended Resistance | 1 in. wc |
| Frame Type | Beverage Board |
| High Initial Resistance | 1 in. wc |
| High Velocity | 500 FPM |
| Material | Synthetic |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Nominal Depth | 2" |
| Nominal Filter Size | 16" x 25" x 2" |
| Nominal Height | 16" |
| Nominal Width | 25" |
| Pleats Per Linear Feet | 12 |
| Actual Filter Size | 15 1/2" x 24 1/2" x 1 3/4" |
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1389 CFM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 40% |
| Filter Frame Color | White |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.20 in. wc |
| Initial Resistance @ 500 Fpm | 0.33 in. wc |
| Media Area | 8.2 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Performance Rating (meets Or Exceeds) | MERV 8 |
| Pleats Per Linear Foot | 10 |
| Standards | UL 900 CLASSIFIED |
| Style - Air Filters | Pleated |
