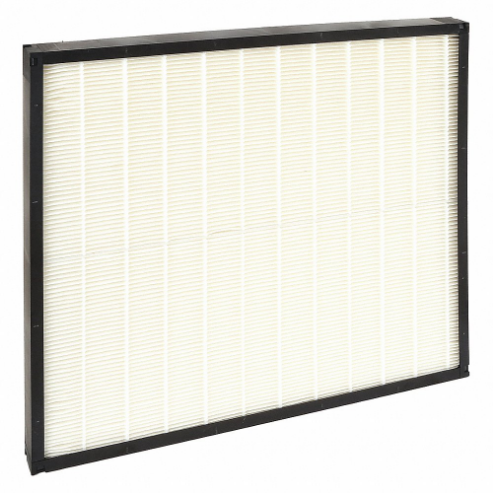

AIR HANDLER 33E964 Mini-pleat Filter 20 x 24 x 2 Merv 11
Get it by Tuesday, Jun 17
€124.40 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Minipleat Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Pack Enclosure | Plastic Frame |
| Final Resistance | 1 in. wc |
| Initial Resistance | 0.27 in. wc |
| Max. Air Flow | 1915 CFM |
| Max. Temp. | 150°F |
| Media Area | 150 sq. ft. |
| Nominal Depth | 2" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Actual Depth | 1 3/4" |
| Actual Filter Size | 19 3/8" x 23 3/8" x 1 3/4" |
| Actual Height | 19 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | No Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1667 CFM |
| Air Flow @ 625 Fpm | 2083 CFM |
| Filter Efficiency - Air Filters | 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Plastic |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 500 Fpm | 0.23 in. wc |
| Max. Velocity | 625 FPM |
| Media Color | White |
| Media Material | Synthetic |
| Media Separator Construction | Glue |
| Nominal Filter Size | 20" x 24" x 2" |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
| Ship weight (kg) | 1.11 |
| Ship height (cm) | 52.32 |
| Ship length (cm) | 28.96 |
| Ship width (cm) | 64.77 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Max. Air Flow | Nominal Filter Size | Nominal Height | Nominal Width | Price | |
|---|---|---|---|---|---|---|---|
 |
33E950 | 845 cfm | 10x20x2 | 10" | 20" | €97.54 | |
 |
33E951 | 915 cfm | 12x20x2 | 12" | 20" | €102.69 | |
|
33E953 | 985 cfm | 14x20x2 | 14" | 20" | €120.01 | |
 |
33E954 | 1405 cfm | 14x25x2 | 14" | 25" | €122.14 | |
 |
33E955 | 1345 cfm | 15x20x2 | 15" | 20" | €125.95 | |
 |
33E956 | 1445 cfm | 16x16x2 | 16" | 16" | €122.70 | |
|
33E958 | 1440 cfm | 16x24x2 | 16" | 24" | €117.33 |
