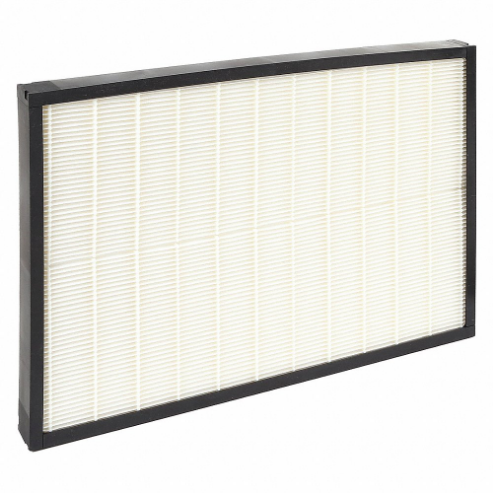

| Item | Minipleat Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Pack Enclosure | Beverage Board Frame |
| Final Resistance | 1 in. wc |
| Initial Resistance | 0.27 in. wc |
| Max. Air Flow | 1345 CFM |
| Max. Temp. | 150°F |
| Media Area | 150 sq. ft. |
| Nominal Depth | 2" |
| Nominal Height | 15" |
| Nominal Width | 20" |
| Actual Depth | 1 3/4" |
| Actual Filter Size | 14 3/8" x 19 3/8" x 1 3/4" |
| Actual Height | 14 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | No Header |
| Air Flow @ 300 Fpm | 625 CFM |
| Air Flow @ 500 Fpm | 1050 CFM |
| Air Flow @ 625 Fpm | 1302 CFM |
| Filter Efficiency - Air Filters | 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 500 Fpm | 0.23 in. wc |
| Max. Velocity | 625 FPM |
| Media Color | White |
| Media Material | Synthetic |
| Media Separator Construction | Glue |
| Nominal Filter Size | 15" x 20" x 2" |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | UL 900 |
| Style - Air Filters | Box |
