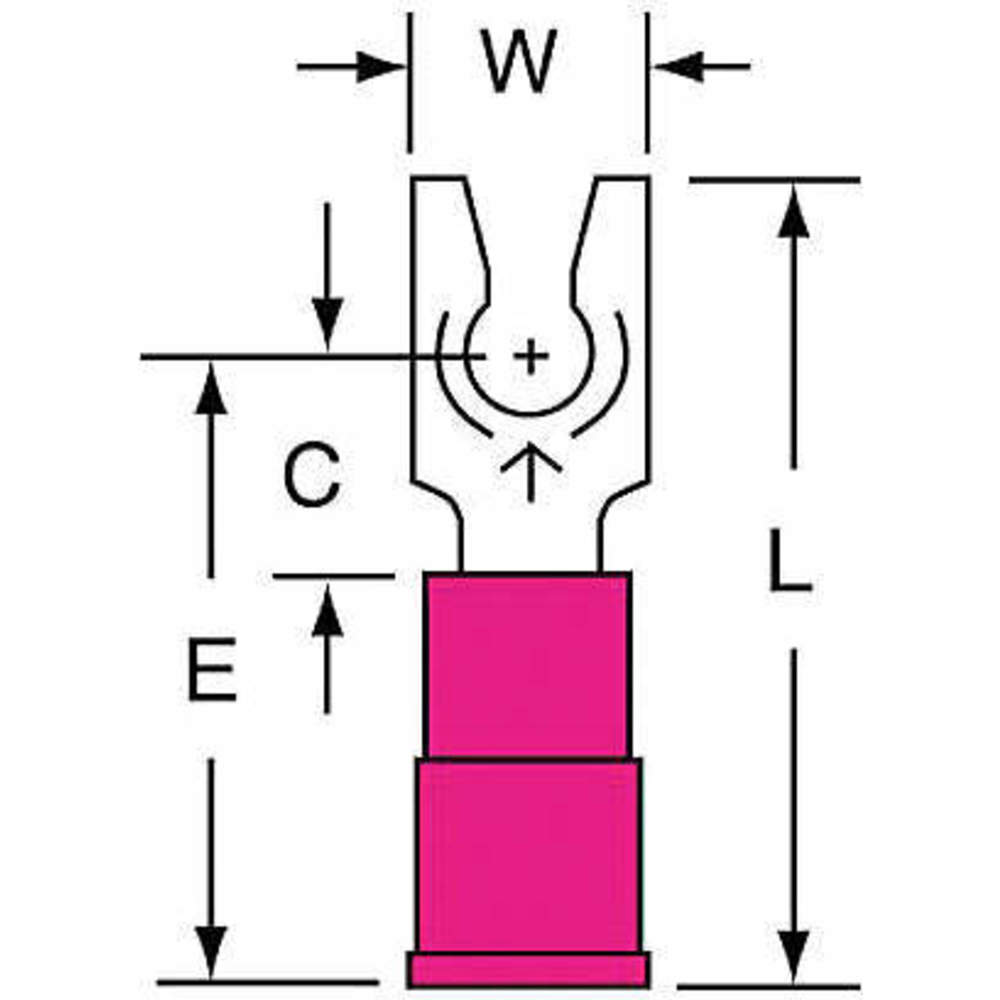

| Item | Fork Terminal |
| Barrel Inside Diameter | 0.07" |
| Clearance | 1/4" |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| Dimension E | 0.7" |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Insulation Outer Dia. | 0.145" |
| Max. Insulation Outside Dia. | 0.145" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 18 AWG |
| Maximum Lock Width | 0.27" |
| Maximum Wire Size | 18 AWG |
| Min. Conductor Size | 22 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 22/25" |
| Seam | Butted |
| Seam Style | Butted |
| Solution For | Wireless Network Infrastructure Accessories |
| Stud Diameter | 0.138" |
| Stud Size | #6 |
| Terminal Connection | Crimp |
| Terminal Type | Locking |
| Wire Size | 22 AWG to 18 AWG |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 22 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Width | 1/4" |
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.24 |
| Ship width (cm) | 2.54 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7100164146 | Yellow | 1.03" | #6 | 12 to 10 AWG | 500 | €423.36 | |
 |
7100164070 | Blue | 0.88" | #4 | 16 to 14 AWG | 1 | €643.87 | |
 |
7100164072 | Blue | 0.88" | #8 | 16 to 14 AWG | 1 | €528.90 | |
 |
7100164071 | Blue | 0.88" | #6 | 16 to 14 AWG | 1 | €581.22 |
