Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

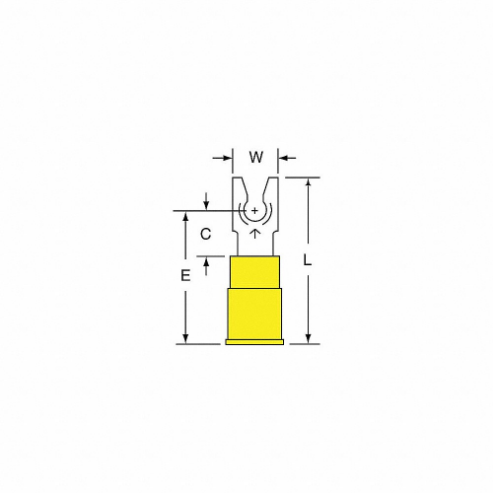

| Item | Fork Terminal |
| Barrel Inside Diameter | 0.135" |
| Clearance | 7/25" |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| Dimension E | 0.83" |
| Insulation Color | Yellow |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Insulation Outer Dia. | 1/4" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 10 AWG |
| Maximum Lock Width | 0.3" |
| Maximum Wire Size | 10 AWG |
| Min. Conductor Size | 12 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 1.03" |
| Seam | Butted |
| Seam Style | Butted |
| Solution For | Wireless Network Infrastructure Accessories |
| Stud Diameter | 0.138" |
| Stud Size | #6 |
| Terminal Connection | Crimp |
| Terminal Type | Locking |
| Wire Size | 12 AWG to 10 AWG |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 12 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Width | 0.28" |
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.62 |
| Ship width (cm) | 2.54 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Price | |
|---|---|---|---|---|---|---|---|
 |
7000132244 | Red | 0.88" | #6 | 22 to 18 AWG | €546.86 | |
 |
7100164070 | Blue | 0.88" | #4 | 16 to 14 AWG | €643.87 | |
 |
7100164072 | Blue | 0.88" | #8 | 16 to 14 AWG | €528.90 | |
 |
7100164071 | Blue | 0.88" | #6 | 16 to 14 AWG | €581.22 |
