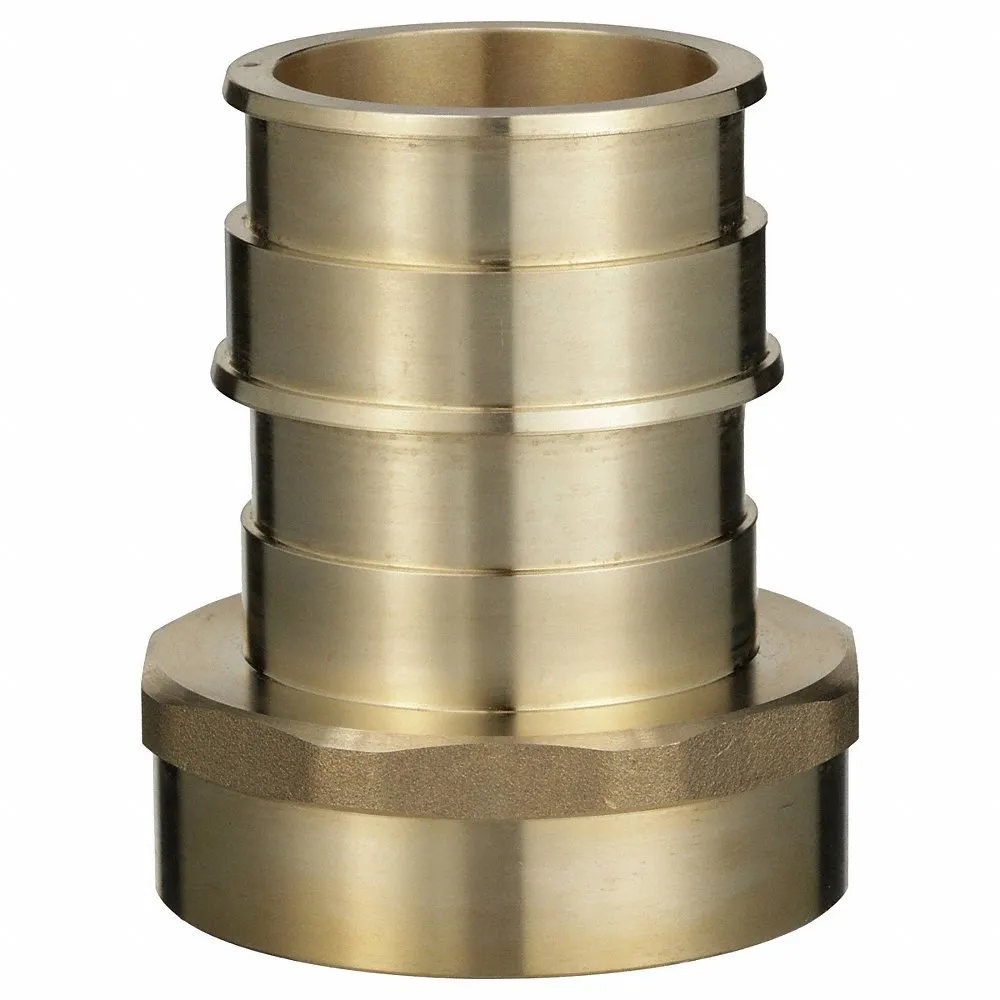

ZURN QEUFC88GX Adapter, Brass, Barbed X Barbed, 2 Inch Pipe Size, 3 Inch Overall Length
€290.75 /unit
Request a Quote
Payment
Payment
| Item | Adapter |
| Application | Potable Water |
| Barb Style | Standard |
| Compatible Tube Material | Polyethylene |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter | 1.55" |
| Fitting Side B Connection Type | Barbed |
| Fitting Side B Pipe Size | 2" |
| Grade | Grade C69300 |
| Hex Size | 2 3/5" |
| Max. Operating Pressure | 160 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 73°F |
| Overall Length | 3" |
| Specific Fitting Shape | Straight Adapter |
| Thread Size B | 2 |
| Material Grade | C69300 |
| Maximum Operating Pressure | 160 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 73°F |
| Size | 1 35/64" x 2" |
| Standards | ASTM F1960, CSA B137.5, NSF/ANSI STANDARD 372 (LOW LEAD), NSF/ANSI STANDARD 61 |
| Ship weight (kg) | 0.39 |
| Ship length (cm) | 7.62 |
