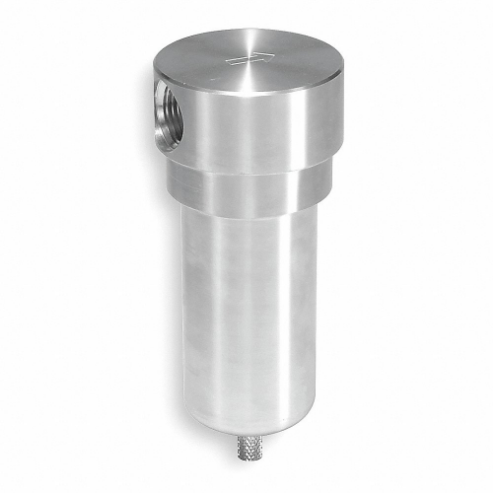

| Item | Pneumatic Oil Filter |
| Bowl Material | Stainless Steel |
| Bowl Size | 1 oz. |
| Drain Included | Yes |
| Drain Type | Manual |
| Filter Bowl Material | Stainless Steel |
| Filter Element Material | Borosilicate Fiber |
| Filter Rating | 0.3 µm |
| Filter Type | Coalescing |
| For Fluid Type | Oil |
| For Removal Of | Oil |
| For Substance Type | Oil Aerosol |
| Gauge Included | No |
| Max. Flow | 16 CFM |
| Max. Pressure | 300 psi |
| Max. Temp. | 180°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Height | 4" |
| Overall Width | 1.57" |
| Seal Material | Fluorocarbon |
| Size - Air Treatment | Subcompact |
| System Location | Air Line |
| Type | Stainless Steel |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/4" |
| Air Outlet Type | NPT |
| Body Material | 316 Stainless Steel |
| Connection Style | Air Line |
| Filter Bowl Capacity | 1 oz. |
| Maximum Flow Rate | 16 CFM |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Temperature | 0°F |
| Overall Depth | 1 9/16" |
| Pressure Drop | 5 psid |
| Series | SM1 Series |
| Standards | ISO, NACE |
| Weight | 0.6 lbs. |
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 3.97 |
| Ship width (cm) | 3.97 |
| HS code | 8421210000 |
| Country of Origin | US |
| Product | Model | Bowl Size | Max. Flow | Overall Height | Overall Width | Pipe Size | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
SM2-04-EYV0 | 1.7 oz. | 46 cfm | 5.56" | 2.38" | 1/2" NPT | Standard | €1,155.84 |
