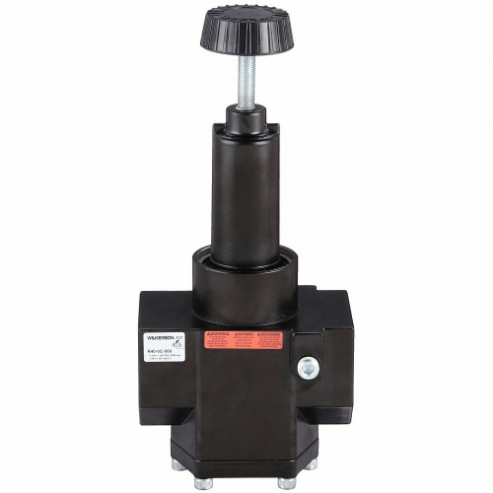

WILKERSON R40-0C-000 Air Regulator 2 Inch Npt 1 200 Cfm 300 Psi
Get it by Wednesday, Jun 18
€425.04 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Air Regulator |
| Adjustment Knob | Rising |
| Adjustment Mechanism | Knob |
| Adjustment Range | 10 psi to 125 psi |
| Adjustment Range - Regulators | 10 psi to 125 psi |
| Air Inlet Gender | Female |
| Air Inlet Size | 2" |
| Air Outlet Gender | Female |
| Air Outlet Size | 2" |
| Body Material | Zinc |
| For Fluid Type | Air |
| For Substance Type | Air |
| Max. Flow - Regulators | 1200 CFM |
| Max. Flow Rate | 1200 CFM |
| Max. Inlet Pressure - Regulators | 300 psi |
| Max. Operating Pressure | 300 psi |
| Max. Pressure | 300 psi |
| Max. Regulated Pressure | 125 psi |
| Max. Temp. | 150°F |
| Min. Regulated Pressure | 10 psi |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Depth | 3 5/8" |
| Overall Height | 11 7/8" , 11.9" |
| Overall Width | 5 5/16" , 5.3" |
| Overall Width - Regulators | 5.3" |
| Pipe Size - Regulators | 2" |
| Pressure Drop | 15 psig |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/4" |
| Regulator Type | Relieving |
| Seal Material | Nitrile |
| System Location | Air Line |
| Air Outlet Type | NPT |
| Maximum Flow Rate | 1200 CFM |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Maximum Regulated Pressure | 125 psi |
| Minimum Operating Temperature | 32°F |
| Minimum Regulated Pressure | 10 psi |
| Pressure Gauge Port Type | NPT |
| Series | R40 Series |
| Weight | 10.8 lbs. |
| Ship weight (kg) | 4.55 |
| Ship height (cm) | 30.16 |
| Ship length (cm) | 9.21 |
| Ship width (cm) | 13.49 |
| HS code | 8481100060 |
| Country of Origin | US |
| Product | Model | Adjustment Range | Body Material | Max. Flow | Max. Temp. | Overall Height | Overall Length | Overall Width | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SR1-02-LAS0 | 0 to 125 psi | Stainless Steel | 12 cfm | 150 Degrees F | 2.67" | 1.56" | 1.56" | 1/4" NPT | €630.37 | |
 |
SR1-02-KAS0 | 0 to 60 psi | Stainless Steel | 12 cfm | 150 Degrees F | 2.67" | 1.56" | 1.56" | 1/4" NPT | €619.54 | |
 |
SR2-04-LAS0 | 0 to 125 psi | Stainless Steel | 80 cfm | 150 Degrees F | 6.08" | 2.43" | 2.34" | 1/2" NPT | €1,931.99 | |
 |
SR2-04-KAS0 | 0 to 60 psi | Stainless Steel | 80 cfm | 150 Degrees F | 6.08" | 2.43" | 2.34" | 1/2" NPT | €1,874.28 | |
 |
R30-08-G00 | - | - | - | - | - | - | - | - | €593.73 |
